Installation (S-10 Chassis)
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 1999 Pontiac Montana, 1999 Oldsmobile Silhouette, 1999 Oldsmobile Bravada, 1999 GMC Yukon, and 1999 GMC Suburban. However, it is still accessible from the selected car via links, so may be relevant.

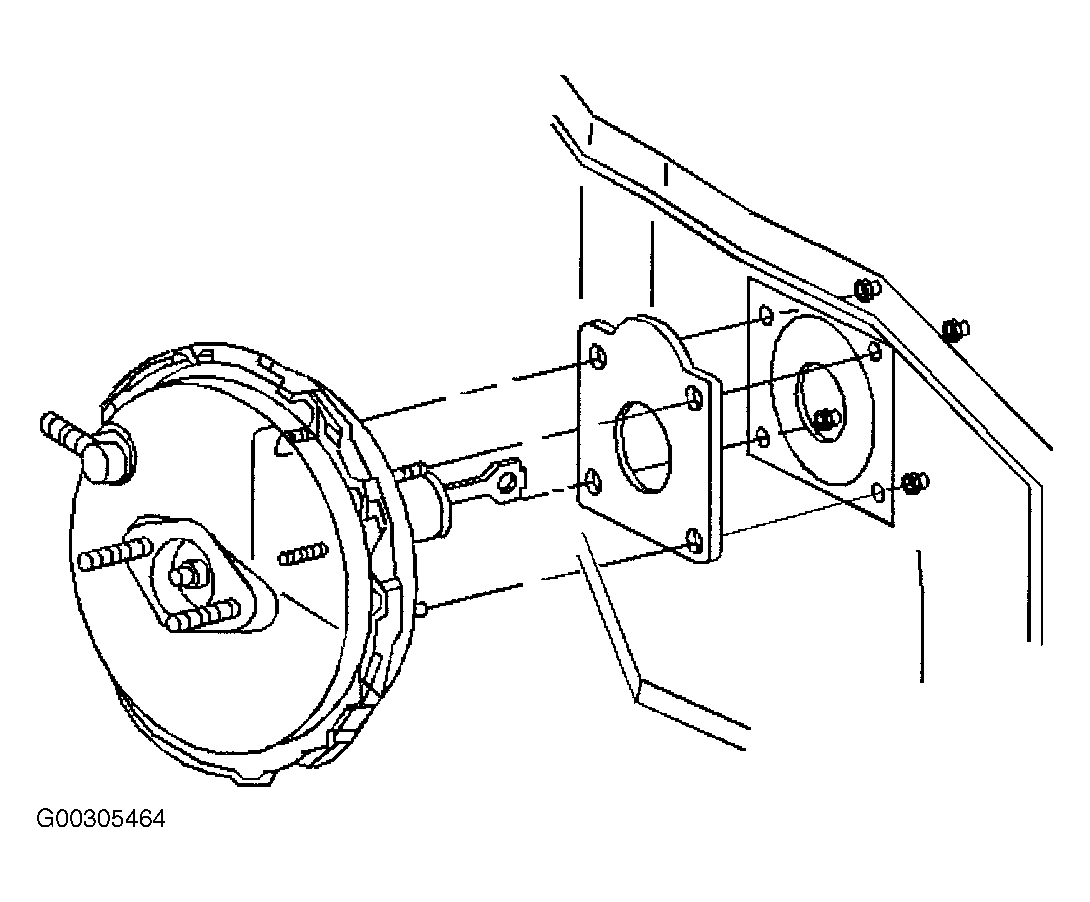

- Install the vacuum booster assembly and the gasket. See Fig 1.
- Install the vacuum booster mounting nuts on the vacuum booster. Tighten the vacuum booster mounting nuts to specification. See TORQUE SPECIFICATIONS .
- Install the steering column support bracket. See appropriate STEERING COLUMN article in STEERING.
- Install the stop light switch and the pushrod to the brake pedal pin.
- Install the pushrod retainer to the brake pedal pin. The retainer will snap into place.
- Install the left closeout/insulator panel.
- Install the check valve to the vacuum booster.
- Install the master cylinder. See MASTER CYLINDER .
