Wiper Motor Cover Replacement

REMOVAL PROCEDURE




1. Remove the wiper motor.

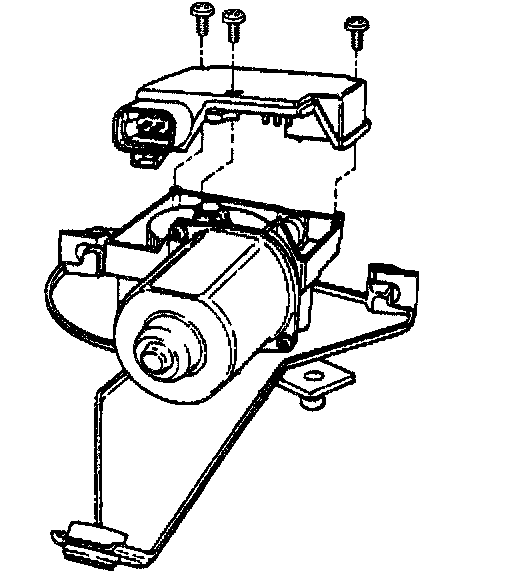

2. Remove three screws from the wiper motor cover.
3. Remove the wiper motor cover.

INSTALLATION PROCEDURE

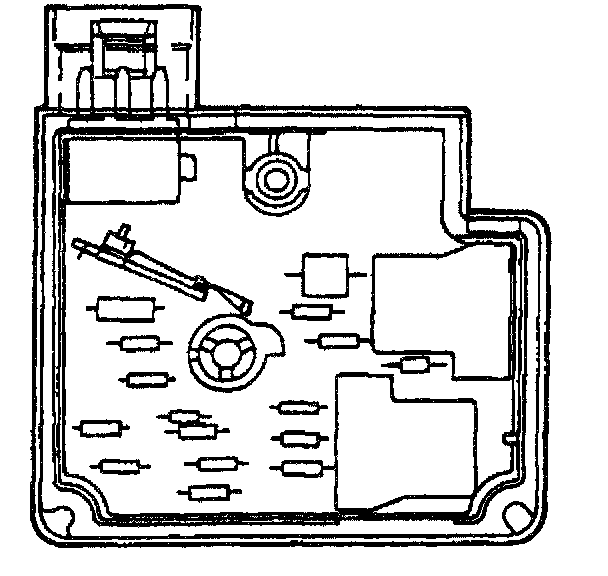

IMPORTANT: Before installing the wiper motor cover, be sure that the inner wipe cam is positioned as shown.




1. Install the wiper motor cover on the wiper motor.




NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install three screws.

Tighten
Tighten the screws to 3 N.m (26 lb in)

3. Install the wiper motor.
