Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Diagrams >> Connector Views >> 3-2 Shift Solenoid Valve Assembly Connector - Harness Side

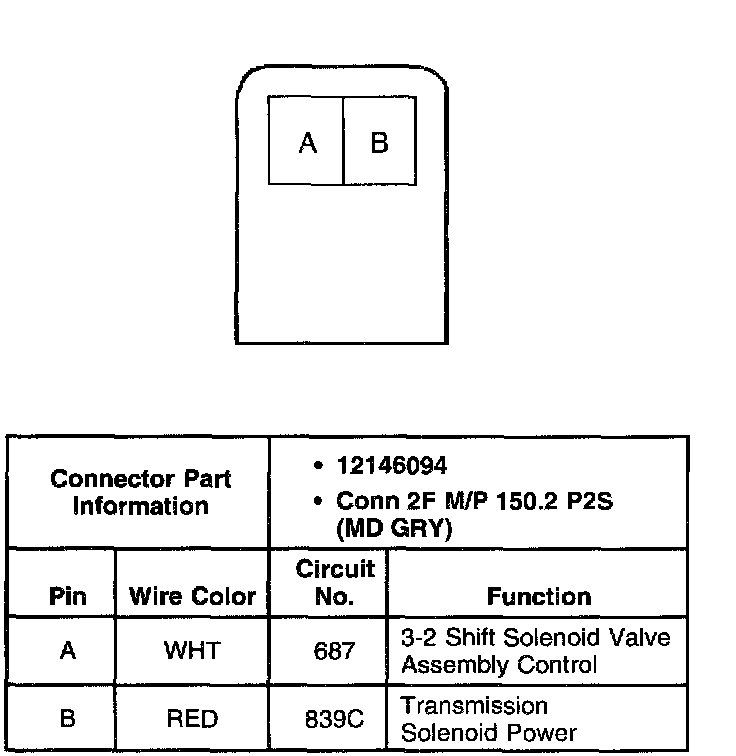

3-2 Shift Solenoid Valve Assembly Connector - Harness Side
