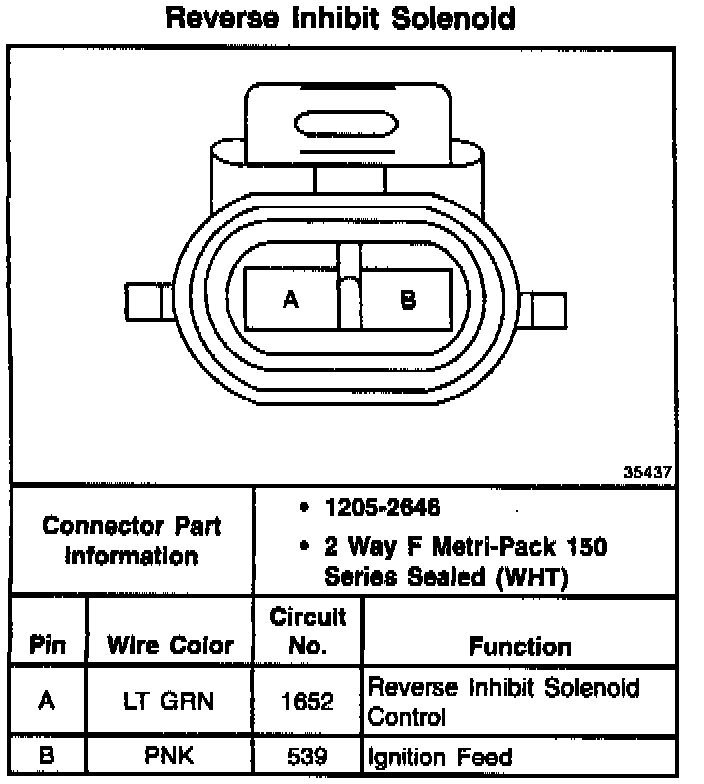

Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Actuators and Solenoids - Transmission and Drivetrain >> Actuators and Solenoids - M/T >> Gear Lockout Solenoid >> Diagrams >> Reverse Inhibit Solenoid
