Shift Control Knob Replacement

REMOVAL PROCEDURE





1. Set the park brake.
2. Place the transmission control in neutral.

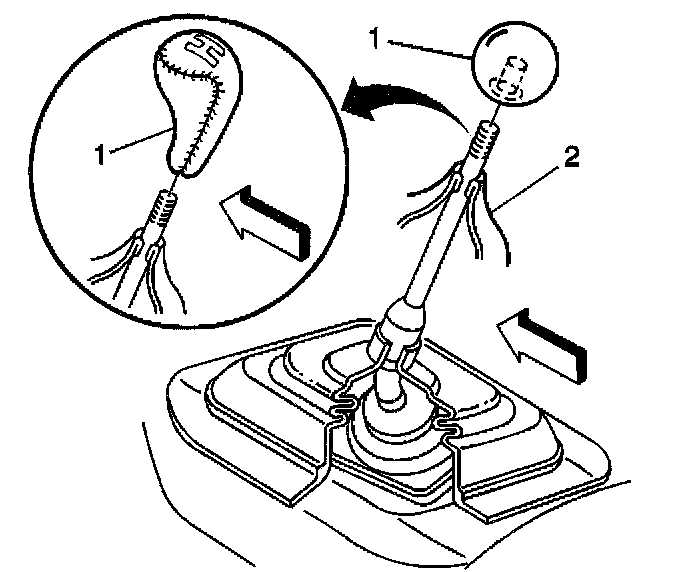

3. Unscrew the control lever knob (1).

INSTALLATION PROCEDURE

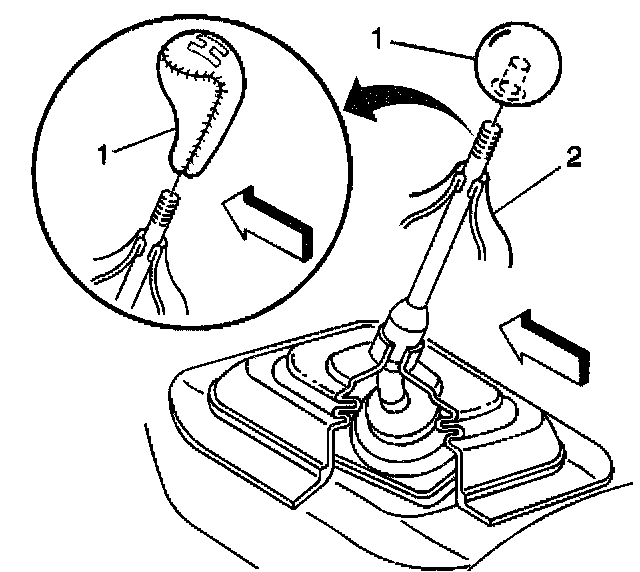

1. Push the shift lever boot (2) down to access the lever threads.





2. Screw the shift control knob (1) onto the shift control lever.
^ Tighten the shift control knob (1) to 3 Nm (27 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Rotate the Hurst shift control knob (1) until the face is parallel to the instrument panel.
4. Place the transmission in gear.
5. Release the park brake.
