Shift Control Closeout Boot Replacement

REMOVAL PROCEDURE





1. Remove the front floor console.

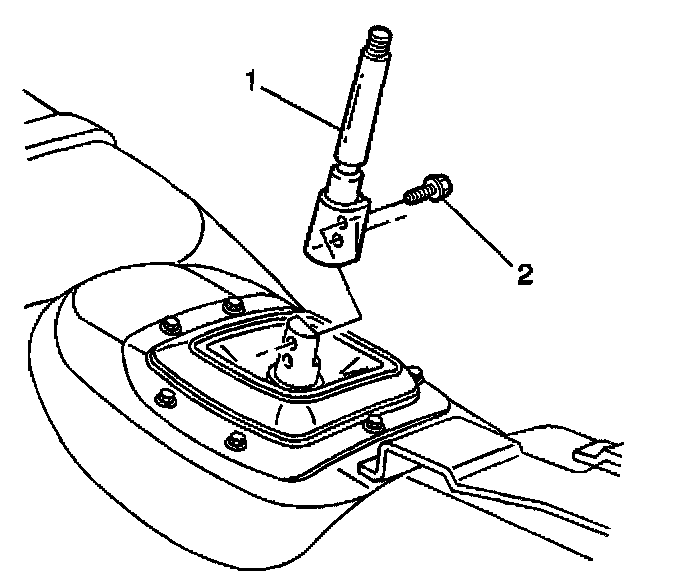

2. Remove the control lever handle bolts (2).
3. Remove the control lever handle (1).

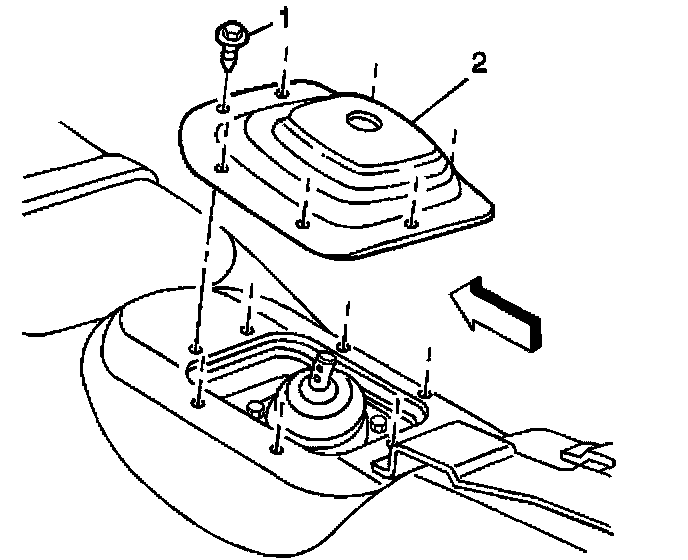

4. Remove the shift control closeout boot bolts (1).
5. Remove the shift control closeout boot (2).

INSTALLATION PROCEDURE

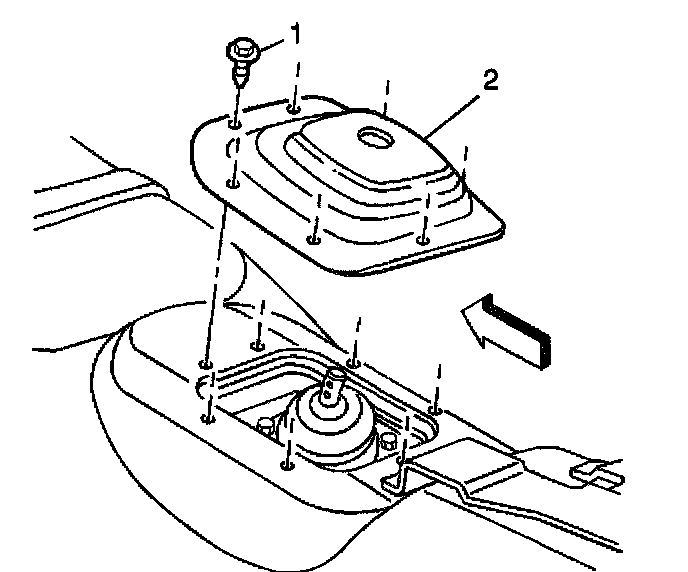

1. Install the shift control closeout boot (1).

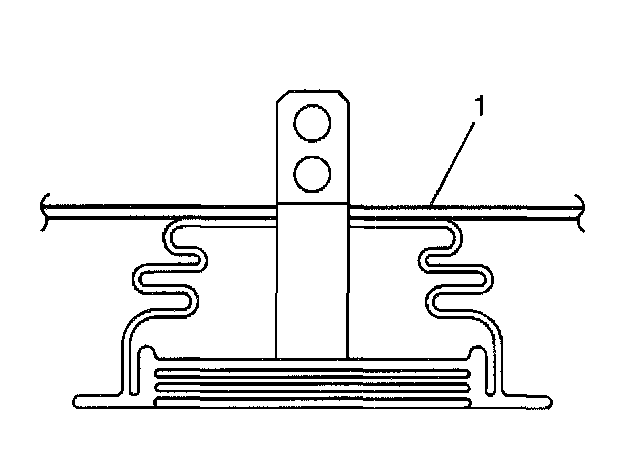

2. Push the shift control closeout boot (1) down until it seats on the control.





3. Install the shift control closeout boot bolts (1).
^ Tighten the shift control closeout boot bolts (1) to 2 Nm (18 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.





4. Install the control lever handle (1).
5. Install the control lever handle bolts (2).
^ Tighten the control lever handle bolts (2) to 25 Nm (18 ft. lbs.).

6. Install the front floor console.
