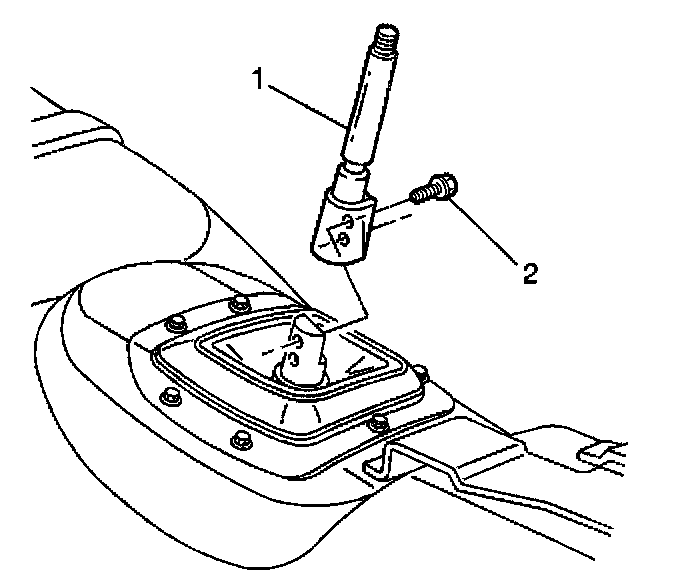

Control Lever Handle Assembly

REMOVAL PROCEDURE





1. Remove the front floor console.
2. Remove the control lever handle bolts (2).
3. Remove the control lever handle (1).

INSTALLATION PROCEDURE





1. Install the control lever handle (1) to the shift control.
2. Install the control lever handle bolts (2).
^ Tighten the control lever handle bolts (2) to 25 Nm (18 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the front floor console.
