Control Lever Boot Assembly

REMOVAL PROCEDURE





1. Remove the shift control closeout boot.

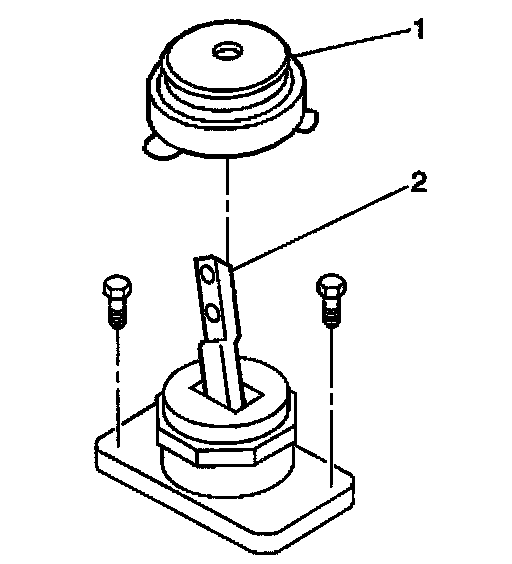

2. Remove the control lever boot (1) from the control lever (2).

INSTALLATION PROCEDURE

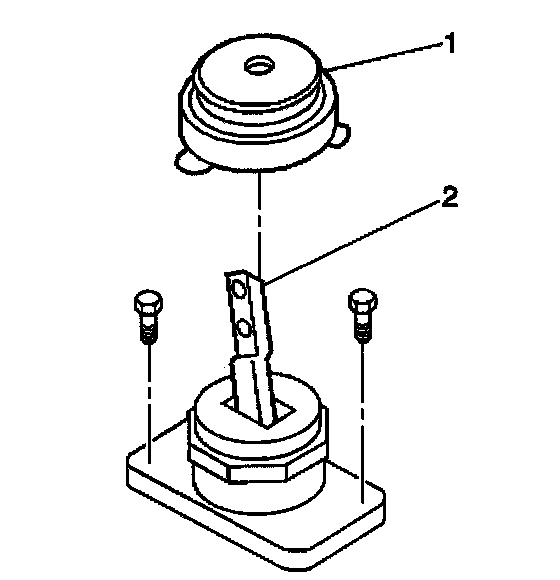

1. Install the control lever boot (1) to the control lever (2).
2. Install the shift control closeout boot.
