Control Assembly, HVAC

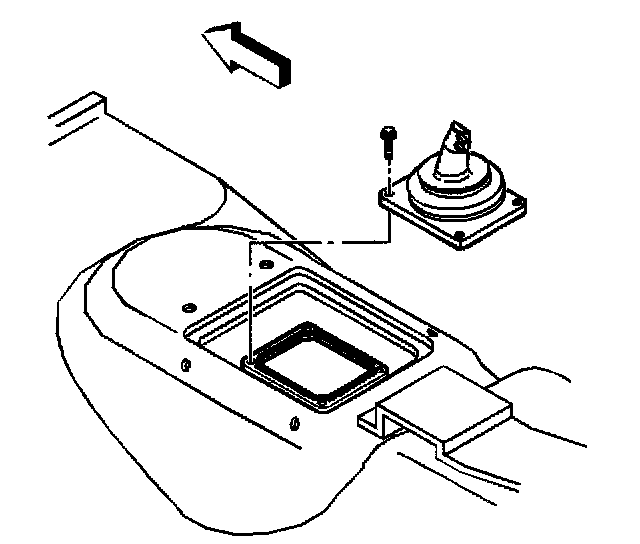

REMOVAL PROCEDURE





1. Remove the shift control closeout boot.
2. Remove shift control bolts.
3. Remove the shift control.
4. Clean the old sealant from the housing and the shift control sealing surfaces.

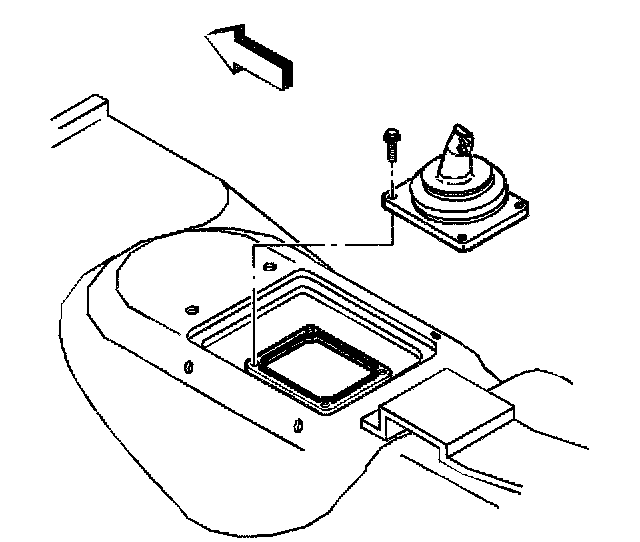

INSTALLATION PROCEDURE

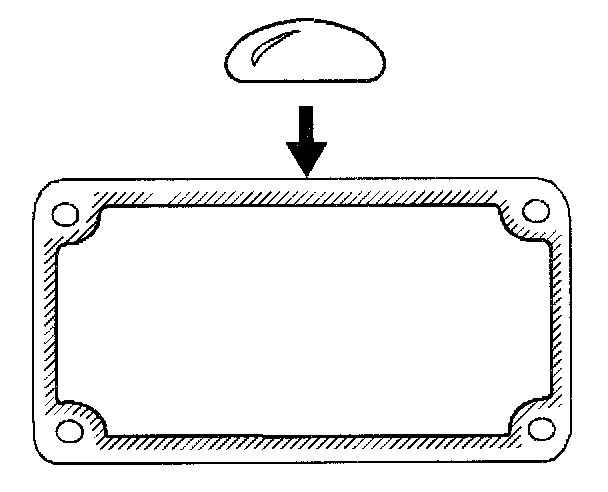

1. Apply sealant to the mating surface of the cover plate.
2. Install the shift control.
3. Install the shift control bolts.
^ Tighten the shift control bolts to 18 Nm (13 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.





4. Install the shift control closeout boot.
