Countershaft Assemble

^ Tools Required
- J 39438 Bearing Installer
- J 5590 Press Tube
- Hydraulic Press

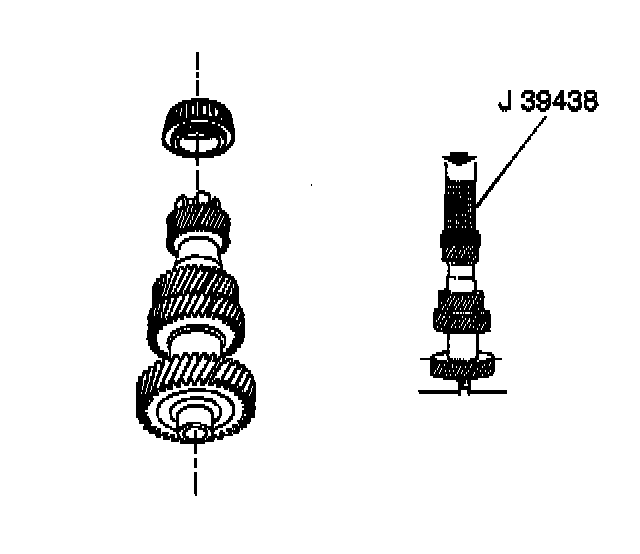

1. Install a new large tapered bearing. Use the J 39438 and a hydraulic press.

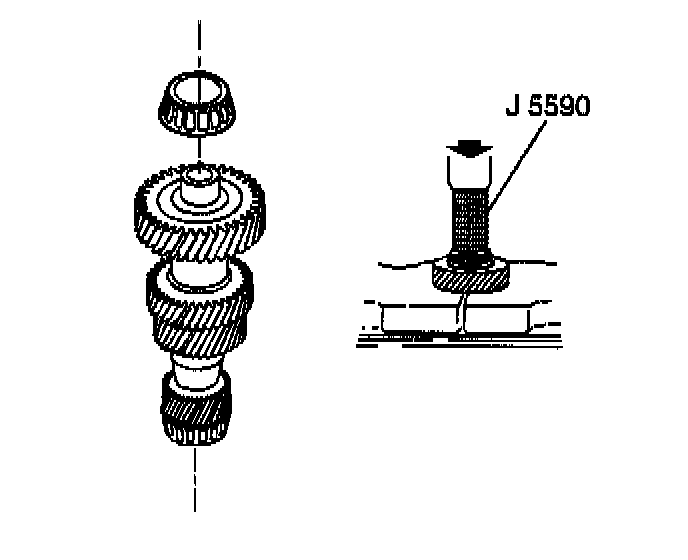

2. Install a new small tapered bearing. Use the J 5590 and a hydraulic press.
