Gear Select/Skip Shift Solenoid Replacement

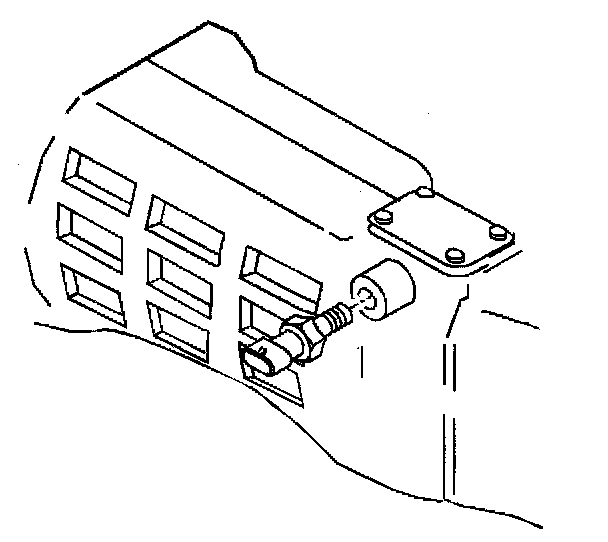

REMOVAL PROCEDURE





1. Remove the transmission.
2. Remove the skip shift solenoid from the transmission.

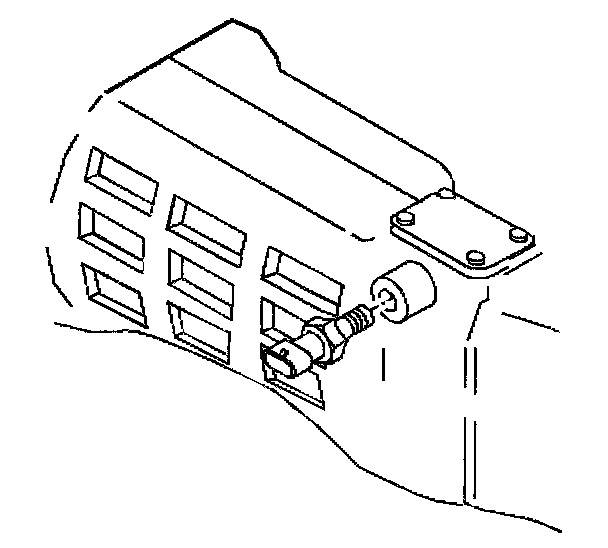

INSTALLATION PROCEDURE





1. Install the skip shift solenoid to the transmission.
^ Tighten the skip shift solenoid to 40 Nm (30 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the transmission.
