Manual Transmission/Transaxle: Diagrams

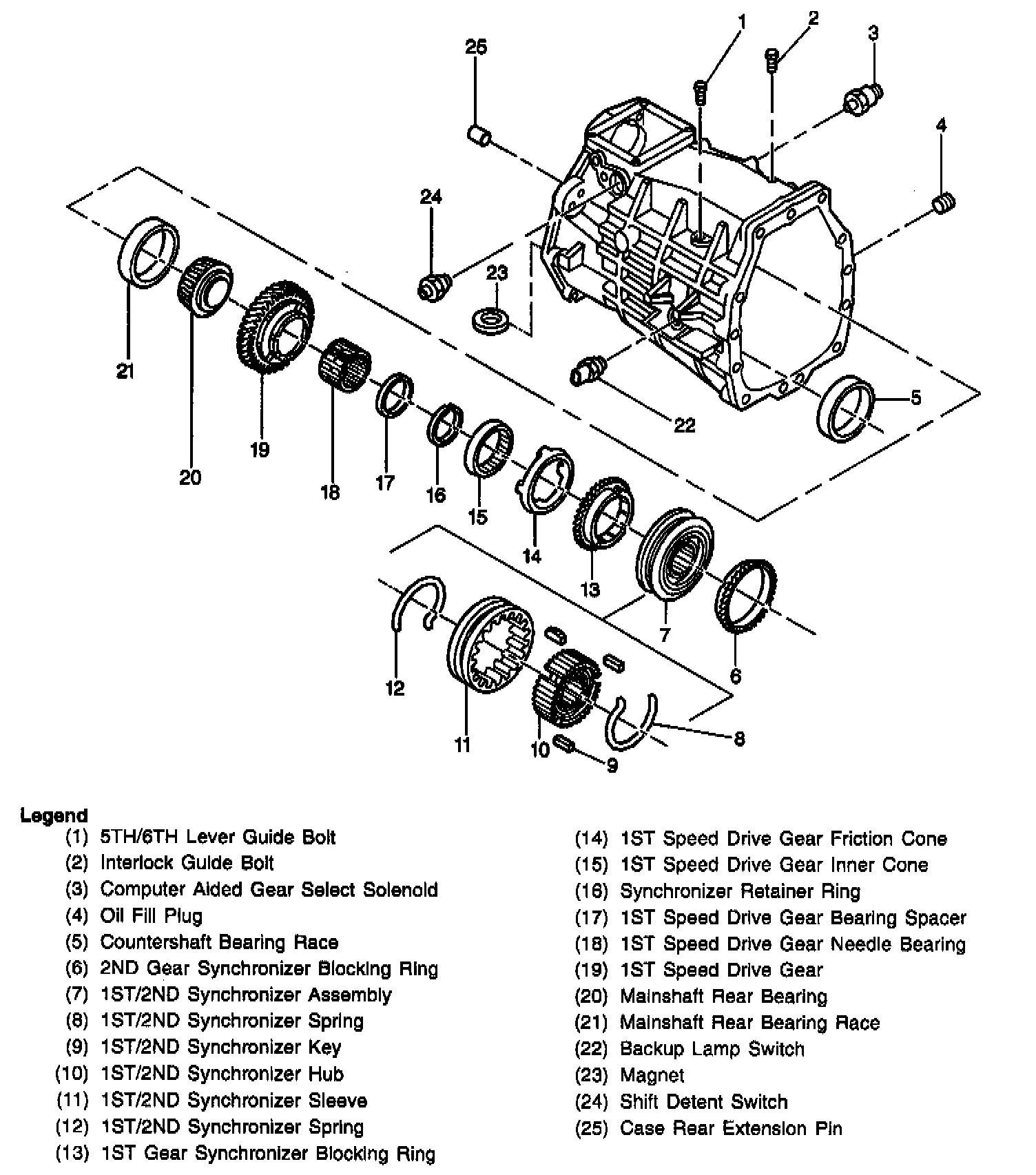

TRANSMISSION CASE (1 OF 2)

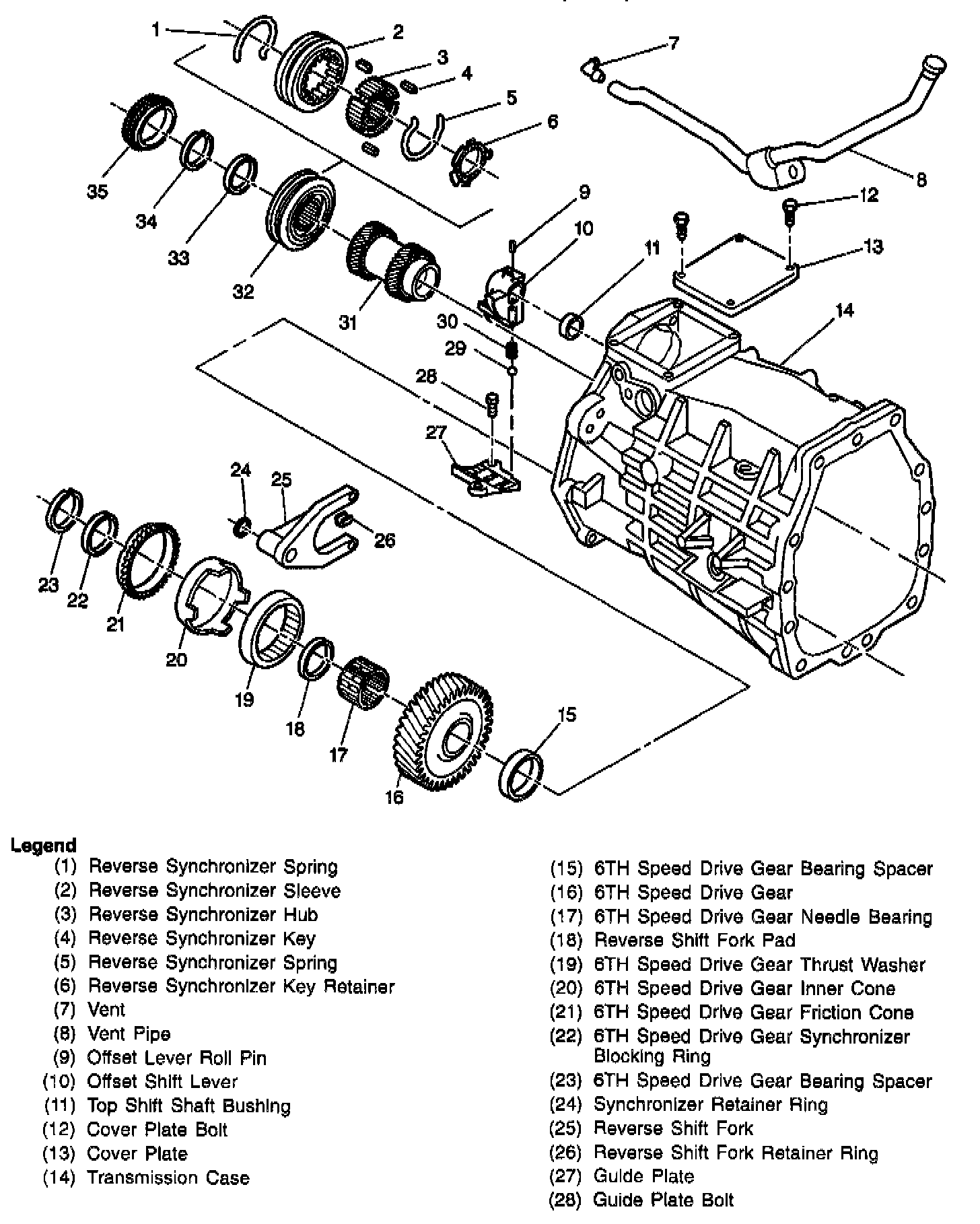

TRANSMISSION CASE (2 OF 2)

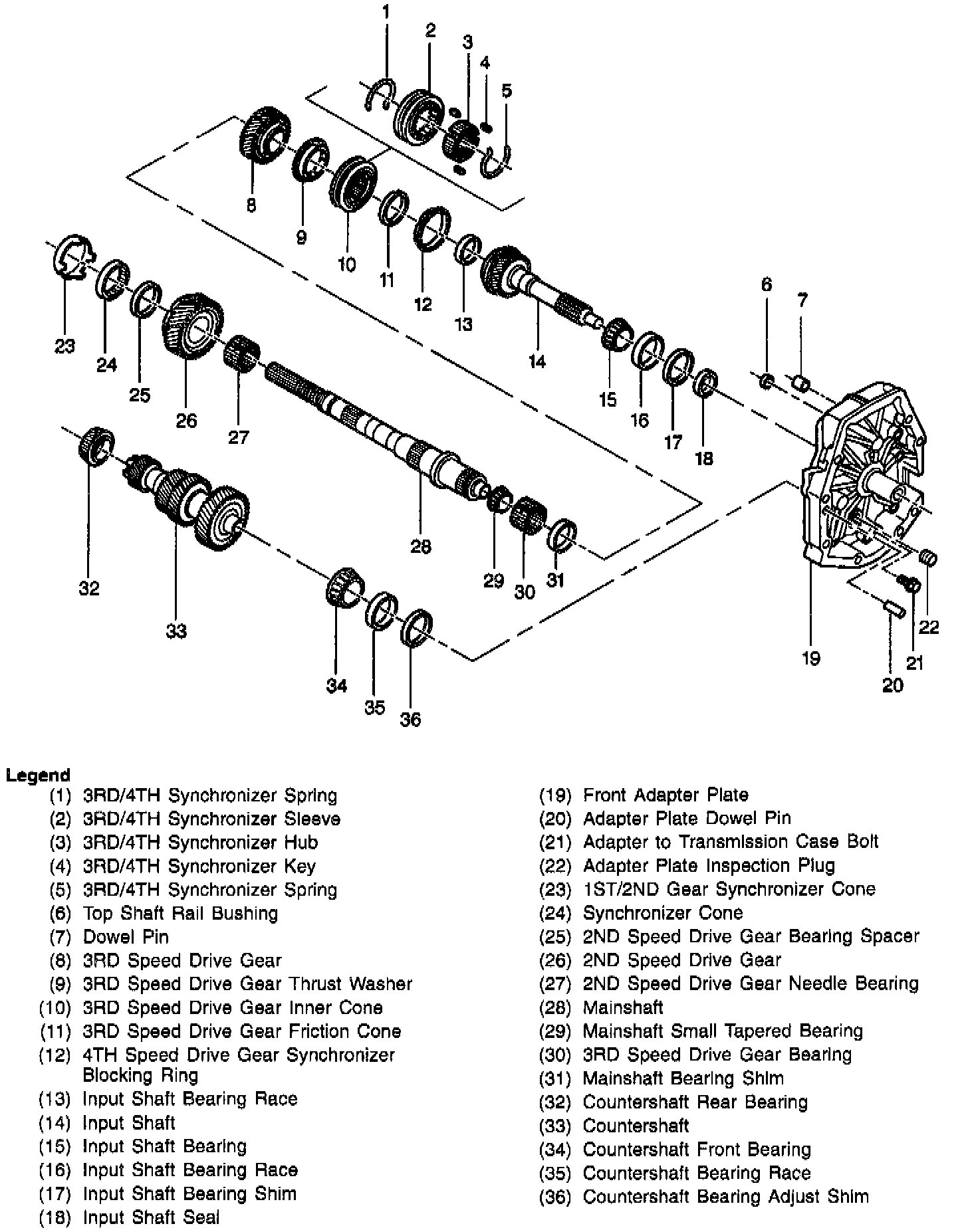

ADAPTER PLATE AND GEARS

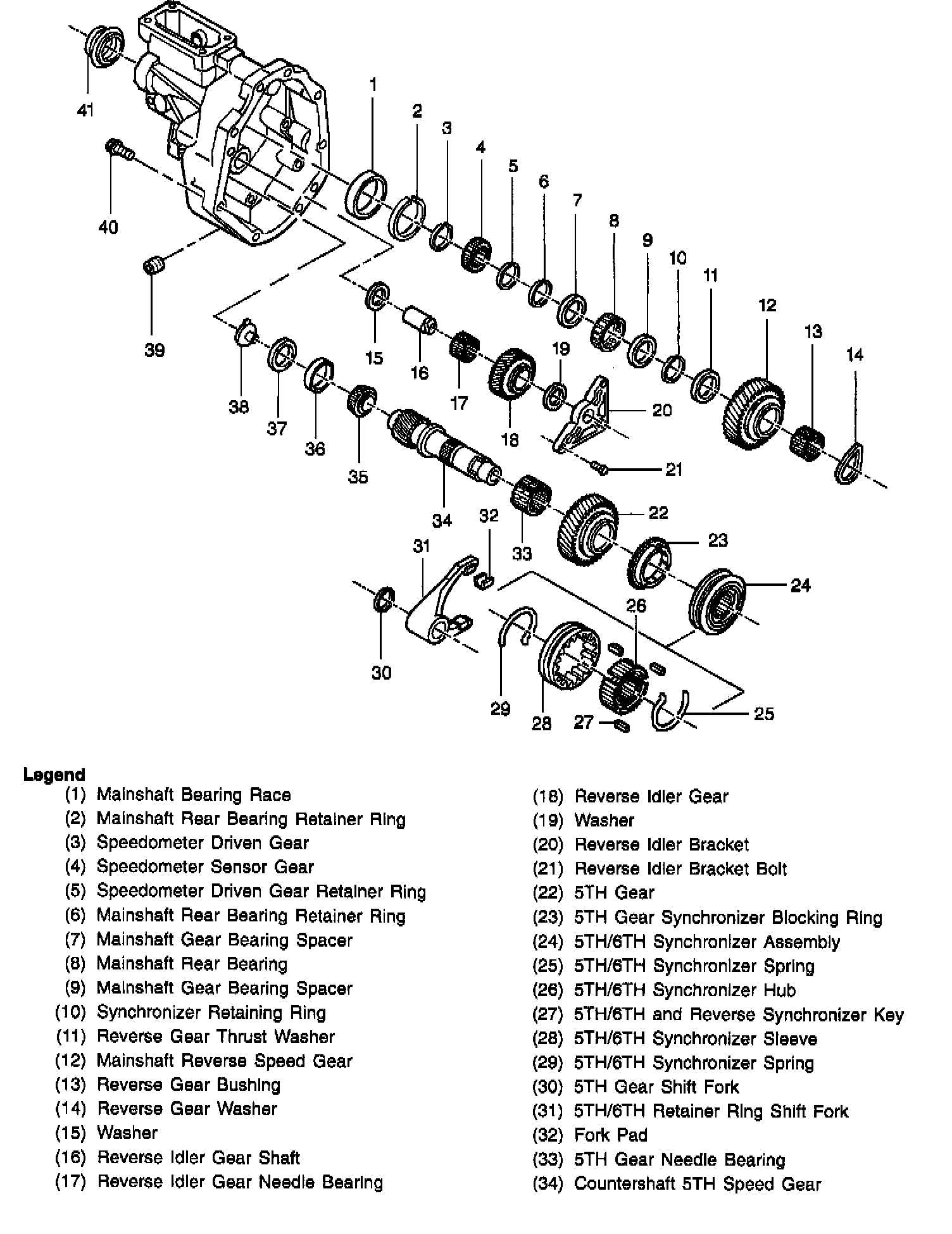

EXTENSION HOUSING

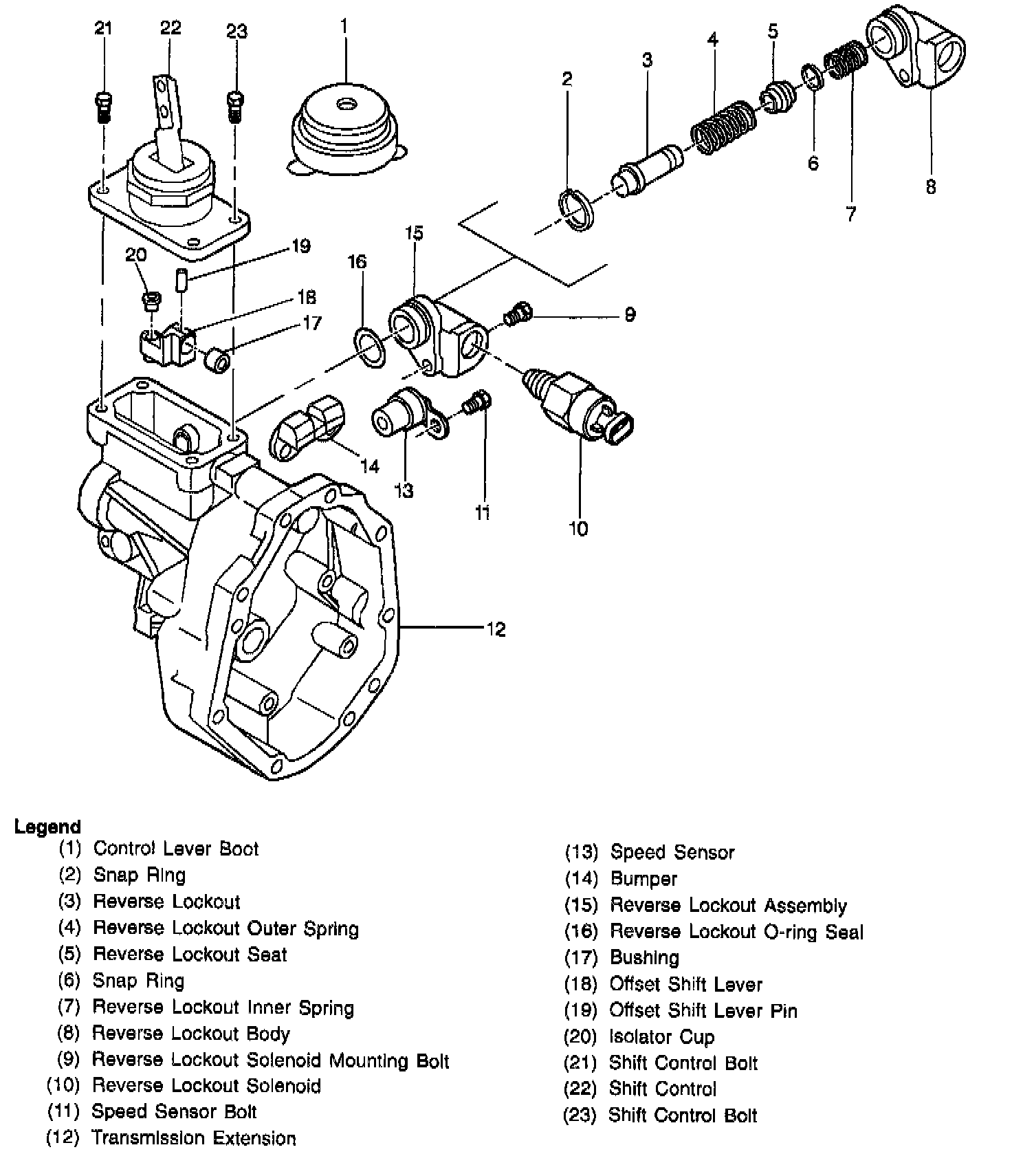

REVERSE LOCKOUT

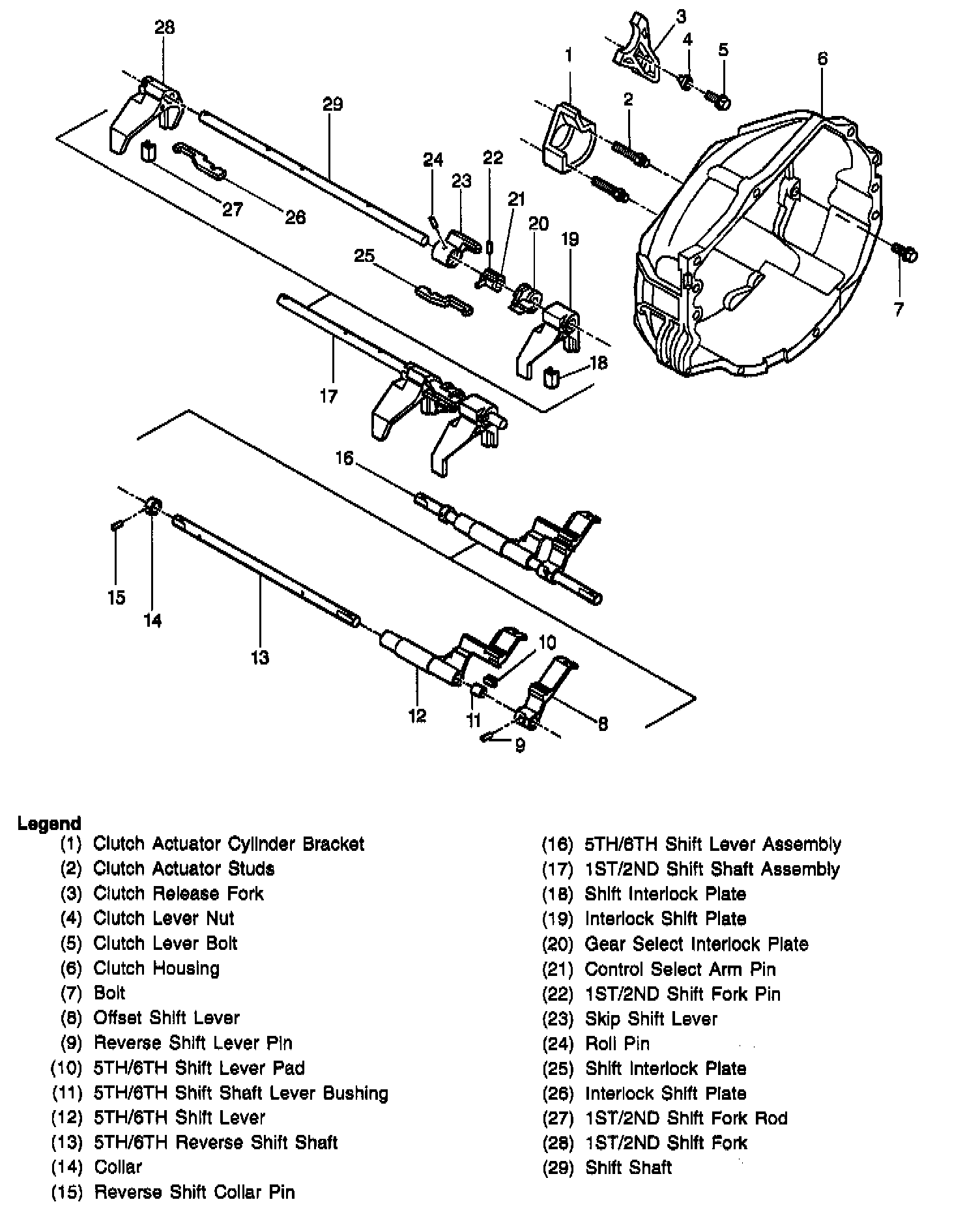

SHIFT SHAFTS
