Case: Service and Repair

REMOVAL PROCEDURE

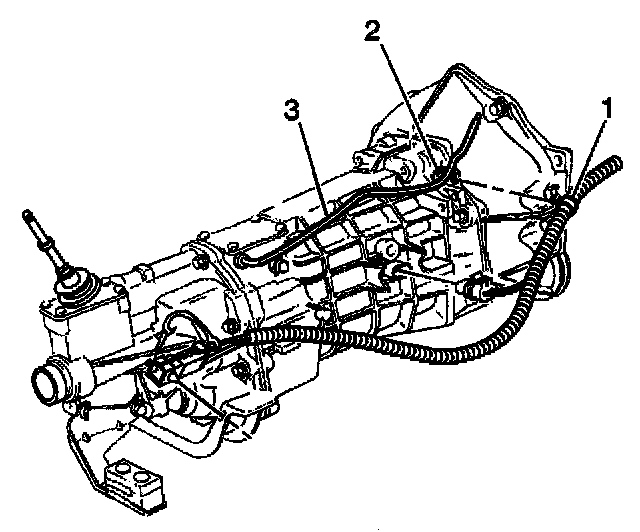

1. Remove the transmission support.
2. Remove the propeller shaft.
3. Remove the torque arm.
4. Lower the tail shaft of the transmission enough to access the transmission bolt (2).
5. Remove the transmission bolt (2).
6. Remove the vent tube (3) from the vent pipe.

INSTALLATION PROCEDURE

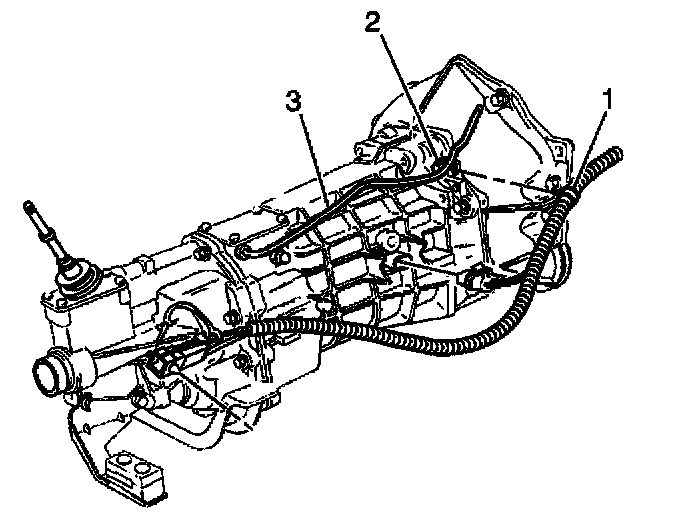

1. Install the vent tube (3) to the vent pipe.
2. Install the transmission bolt (2).
^ Tighten the transmission bolt (2) to 50 Nm (37 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Raise the tail shaft of the transmission.
4. Install the torque arm.
5. Install the propeller shaft.
6. Install the transmission support.
