Clutch Housing Replacement

REMOVAL PROCEDURE

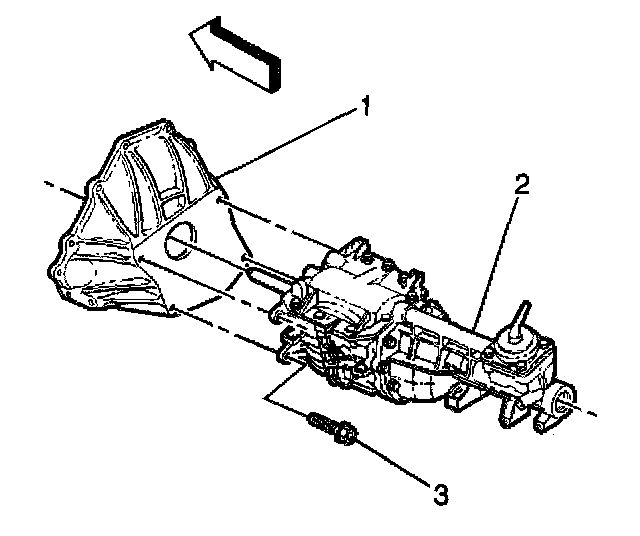

1. Remove the manual transmission.
2. Remove the clutch actuator cylinder.
3. Remove the transmission bolts (3).
4. Separate the flywheel/clutch housing (1) from the transmission (2).
5-speed transmission shown, 6-speed transmission similar.

INSTALLATION PROCEDURE

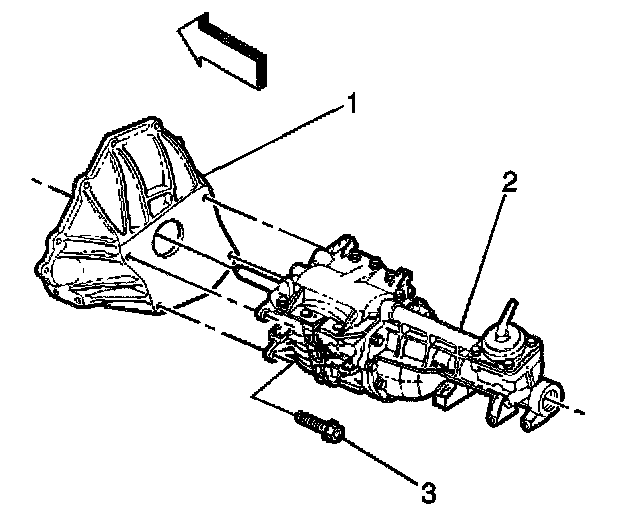

1. Install the flywheel/clutch housing (1) to the transmission (2).
2. Install the transmission bolts (2).
^ Tighten the 5-speed transmission bolts to 75 Nm (55 ft. lbs.).
^ Tighten the 6-speed transmission bolts to 50 Nm (37 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the clutch actuator cylinder.
4. Install the manual transmission.
