Pilot Bearing: Service and Repair

REMOVAL PROCEDURE
^ Tools Required
^ J 23907 Clutch Pilot Bearing Remover





1. Remove the clutch pressure plate and clutch driven plate.

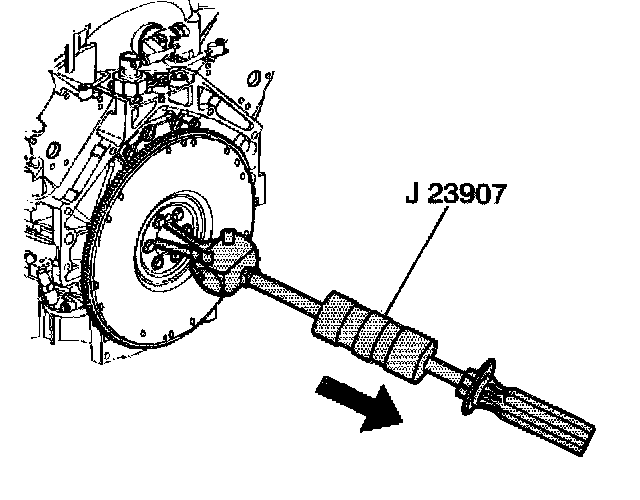

2. Using the J 23907, remove the clutch pilot bearing.

INSTALLATION PROCEDURE

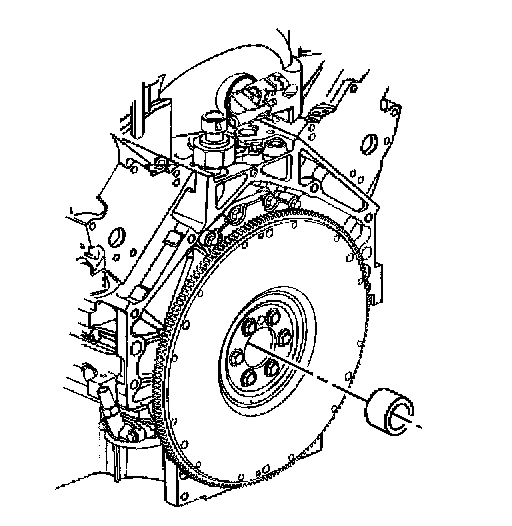

1. Using a suitable size socket, install the clutch pilot bearing.
2. Install the clutch pressure plate and clutch driven plate.
