Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> TFP Valve Position Switch Resistance Check

TFP Valve Position Switch Resistance Check

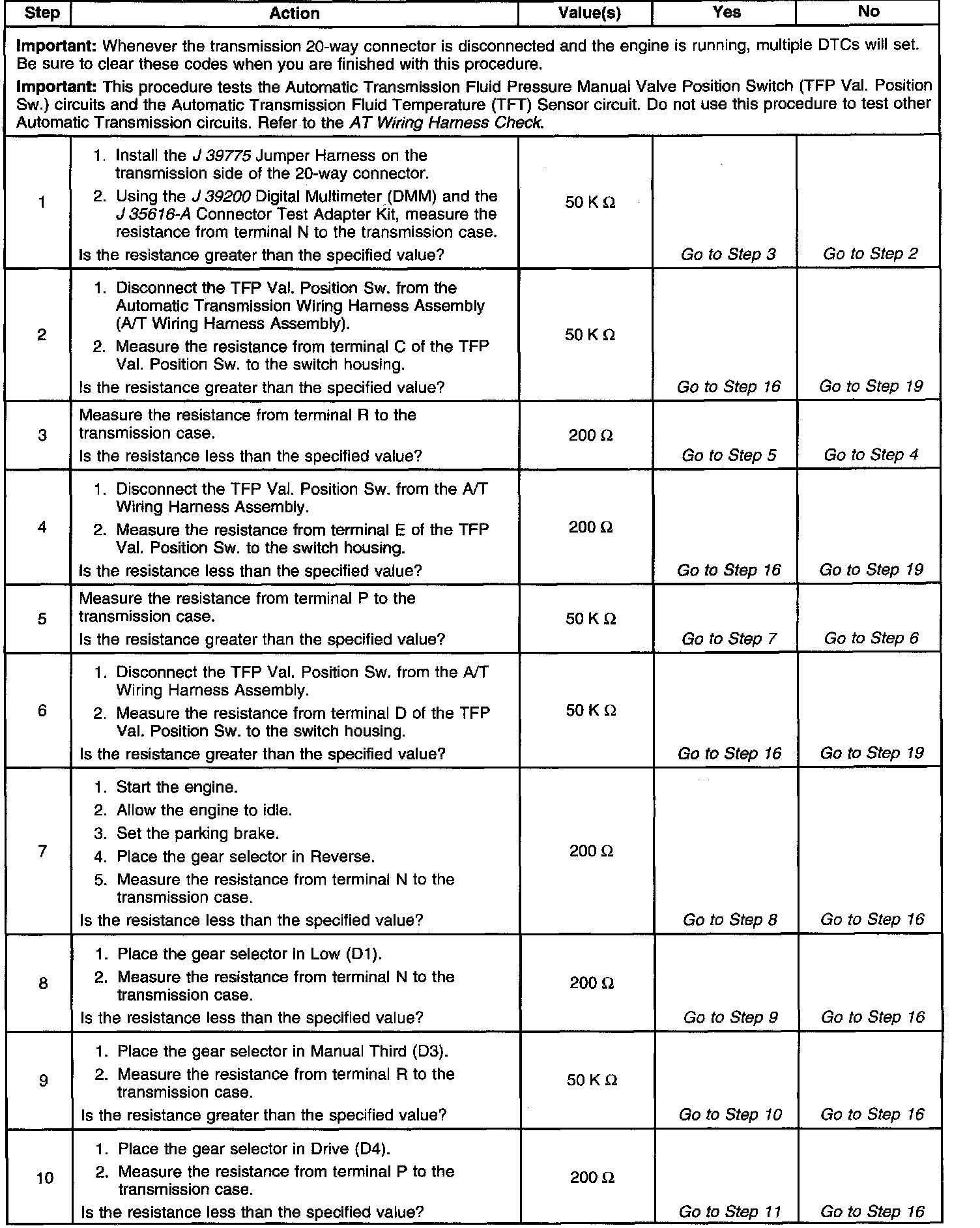

Part 1 Of 3:

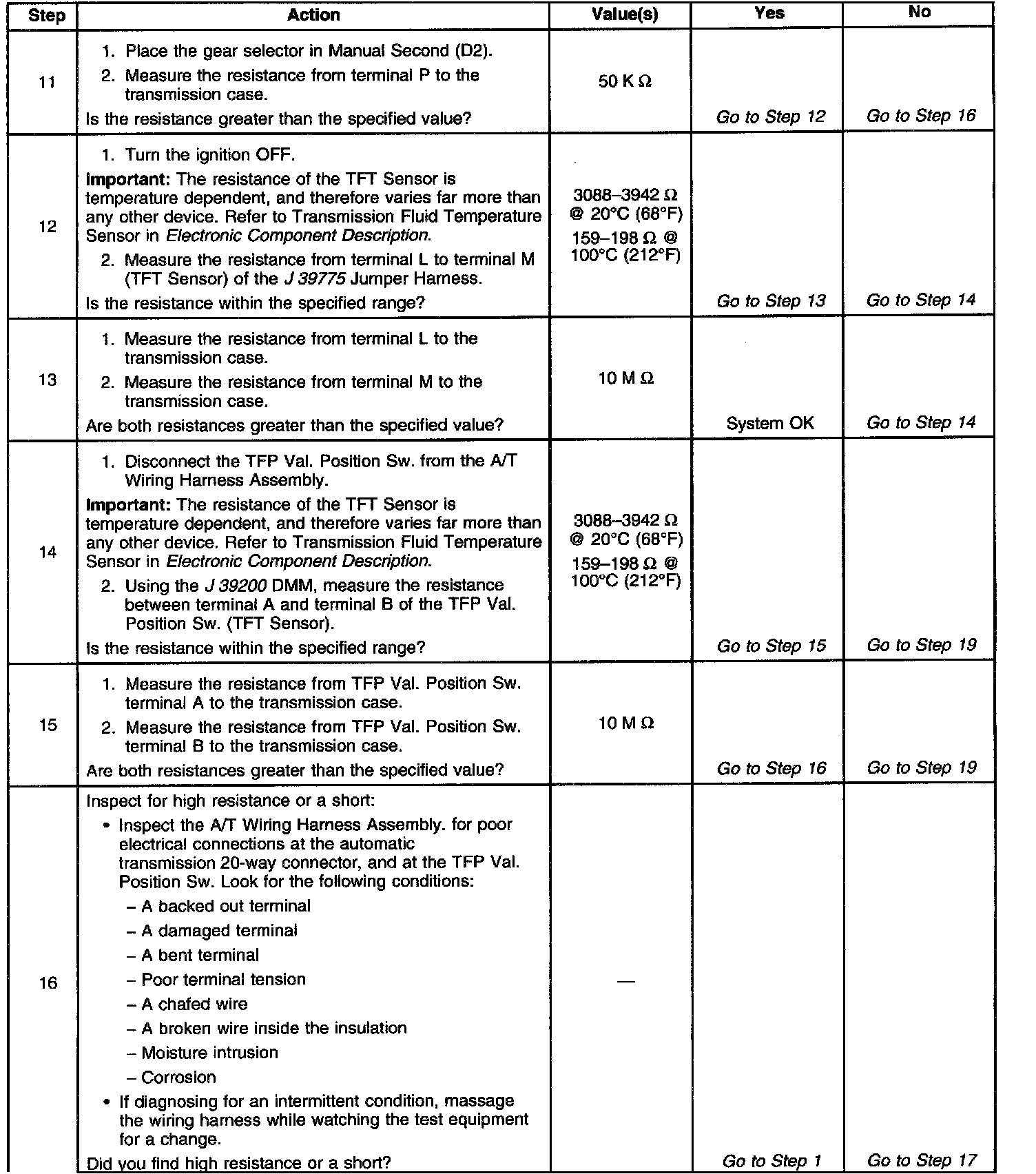

Part 2 Of 3:

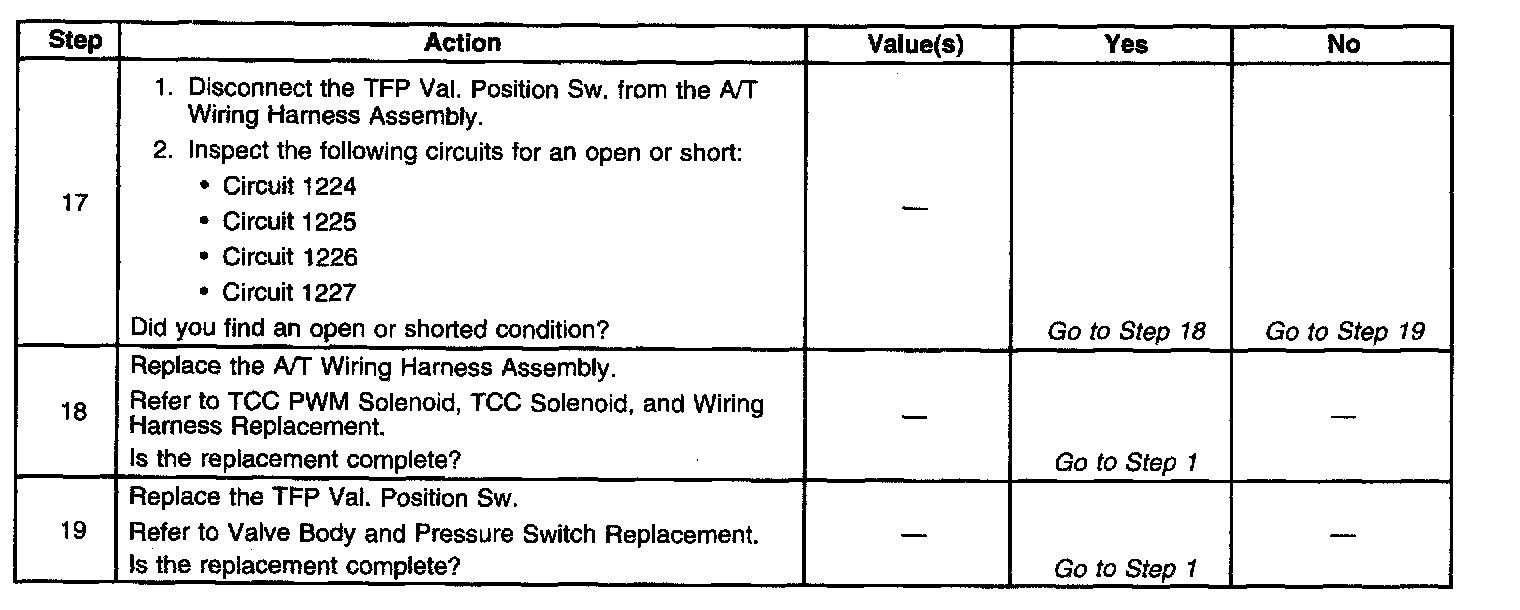

Part 3 Of 3:



Diagnostic Chart:



Diagnostic Chart:



Diagnostic Chart:
