Shifter A/T: Service and Repair

REMOVAL PROCEDURE

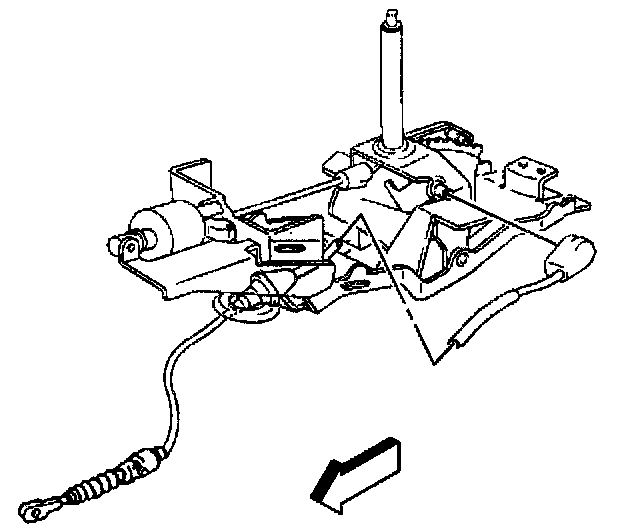

1. Remove the range selector lever cable from the automatic transmission control.
2. Remove the park/neutral position switch.

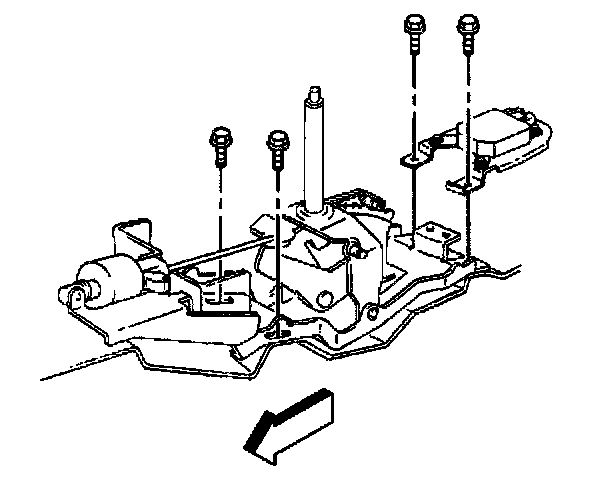

3. Remove the automatic transmission control bolts.
4. Remove the automatic transmission control.

INSTALLATION PROCEDURE
1. Install the automatic transmission control.

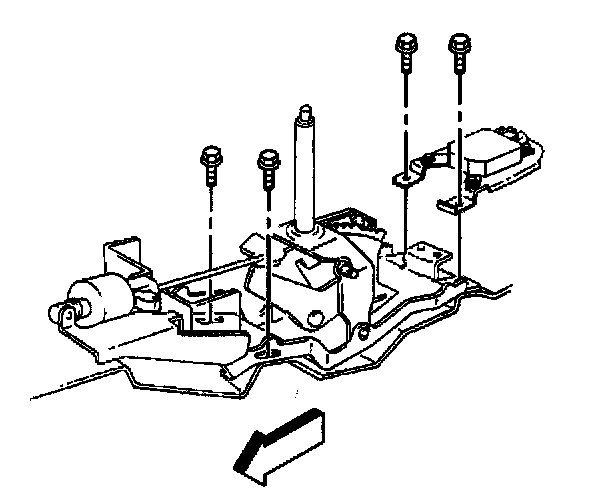

2. Install the automatic transmission control bolts.
^ Tighten the bolts to 8 Nm (71 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the park/neutral position switch.





4. Install the automatic transmission range select lever cable.
