Low and Reverse Clutch Plates Installation

INSTALLATION PROCEDURE





1. Install the waved plate
2. Install the correct selective spacer plate (from the selection procedure).
3. Install, the five composition and four steel plates, starting with one composition plate and alternating with steel.

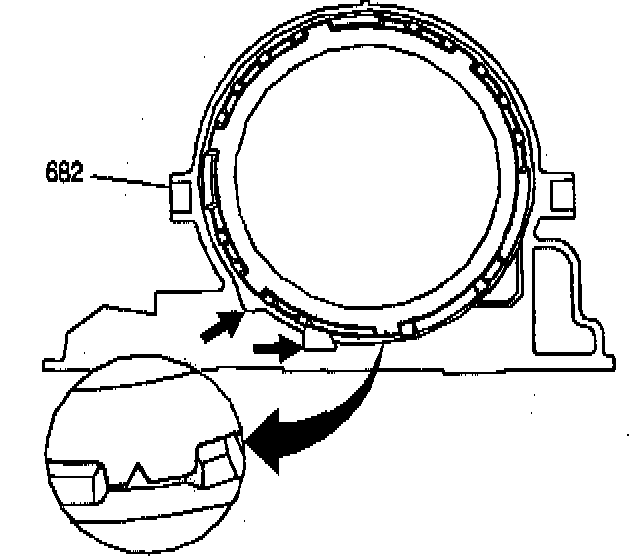

4. Index the steel plate splines in the case as shown.
