Low and Reverse Clutch Piston Removal

^ Tools Required
- J 23327-1 Clutch Spring Compressor
- J 34627 Snap Ring Remover and Installer
- J 42628 Disc

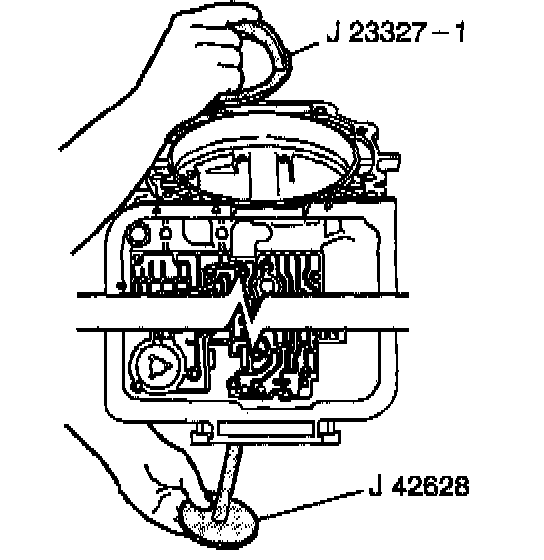

1. Install the J 23327-1 and J 42628.





2. Tighten the J 23327-1.

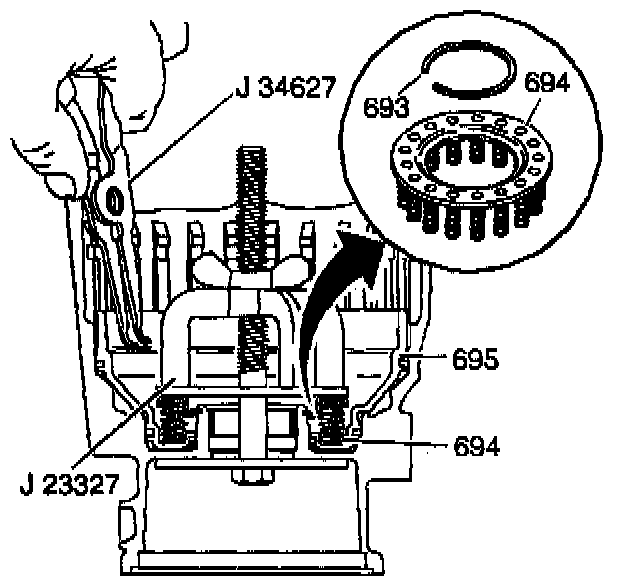

3. Remove the low/reverse clutch retainer ring using the J 34627.
4. Remove the low/reverse the clutch spring assembly.

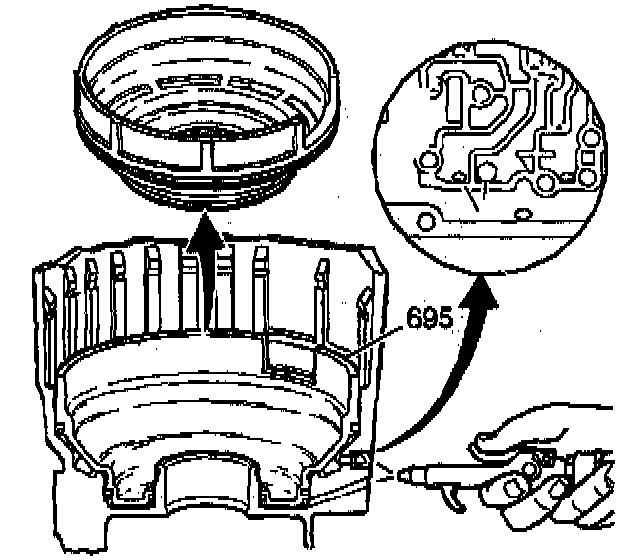

5. Blow compressed air into the case passage to remove the low/reverse clutch piston.
