Input Internal Reaction Gear, Shaft Installation

INSTALLATION PROCEDURE

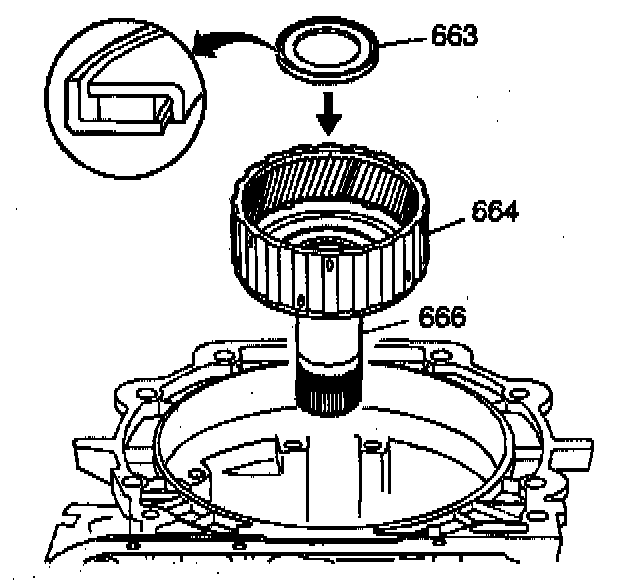

1. Install the input internal gear and shaft assembly into the sun gear shell. Index the shaft spline into the reaction carrier.
2. Install the input carrier shaft bearing thrust assembly.
