Input Carrier Inspection

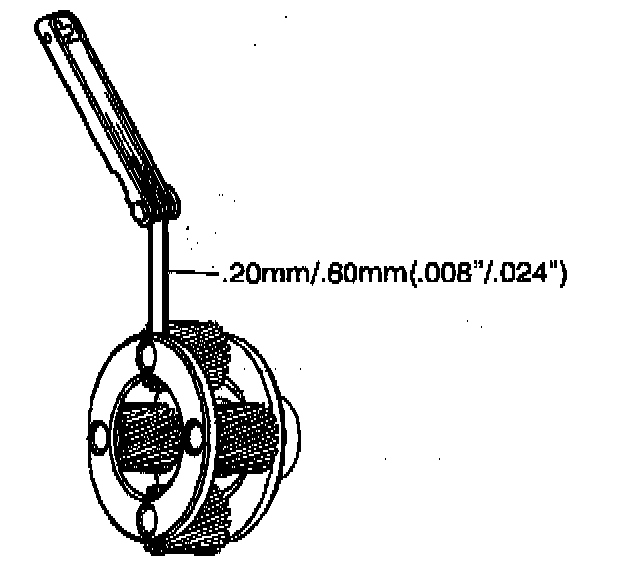

1. Check the pinion end play. The end play must not exceed 0.61 mm (0.024 inch).
2. Inspect the input carrier for pinion gear damage, proper pin-stake and keystone pinion gears. Pinions must rotate freely.
