Inner Manual Linkage Removal

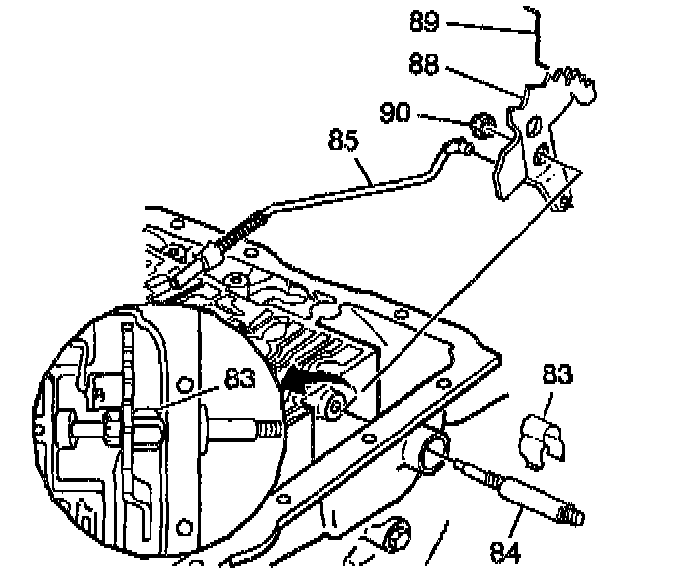

1. Remove the following parts: hex head nut and the manual valve link; inside detent lever and the parking lock actuator assembly; manual shaft retainer and the manual shaft.

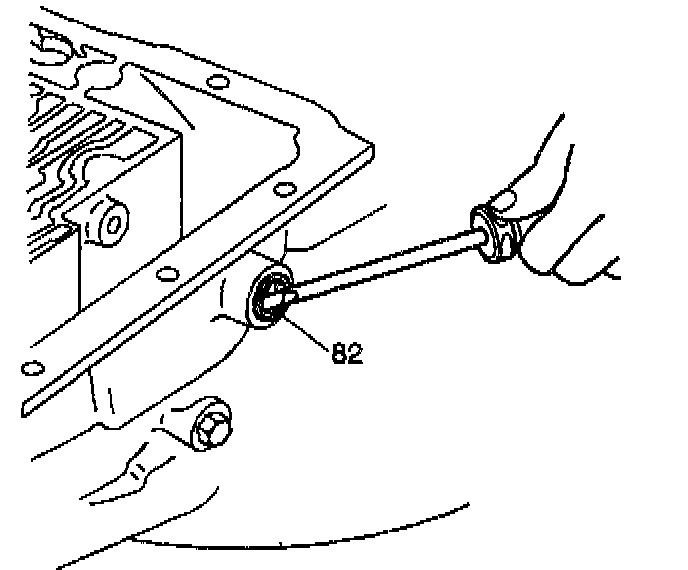

2. Remove the manual shaft seal with a screwdriver.

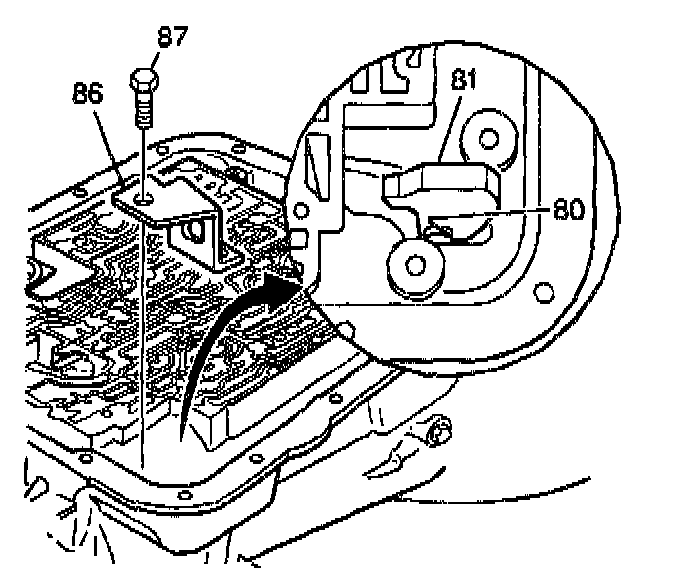

3. Remove the following components:
3.1. The parking lock bracket bolt
3.2. The parking lock bracket
