Forward Clutch Sprag Disassemble

REMOVAL PROCEDURE

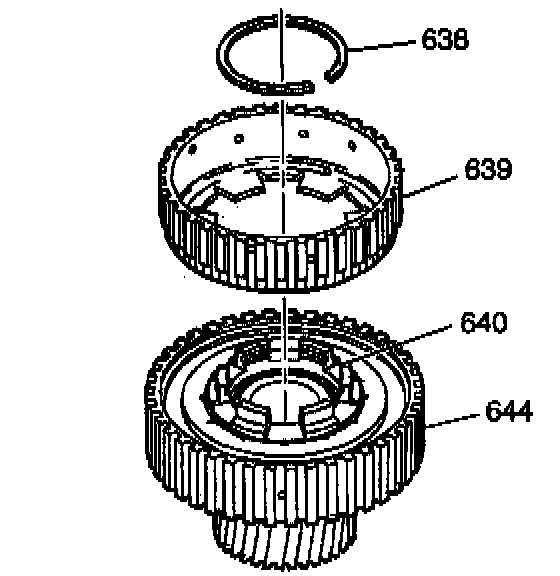

1. Remove the overrun clutch hub retaining snap ring.
2. Remove the overrun clutch hub.
3. Remove the sprag retainer and race assembly.

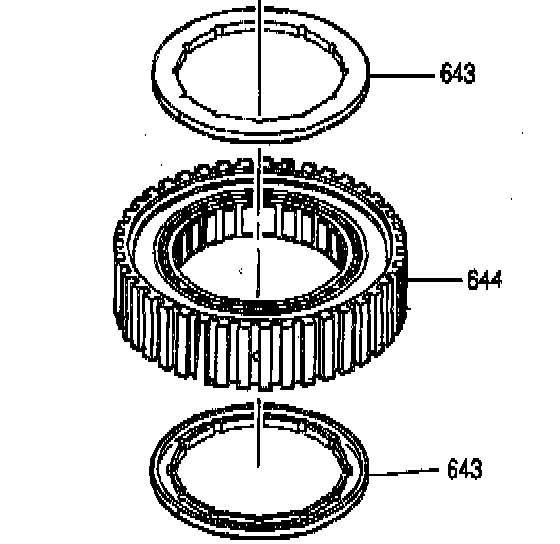

4. Remove the sprag assembly retainer rings.
5. Remove the forward sprag assembly from the forward clutch outer race.
