Case Extension Bushing Replacement

^ Tools Required
- J 8092 Driver Handle
- J 23062-14 Bushing Remover
- J 34196 Bushing Service Set

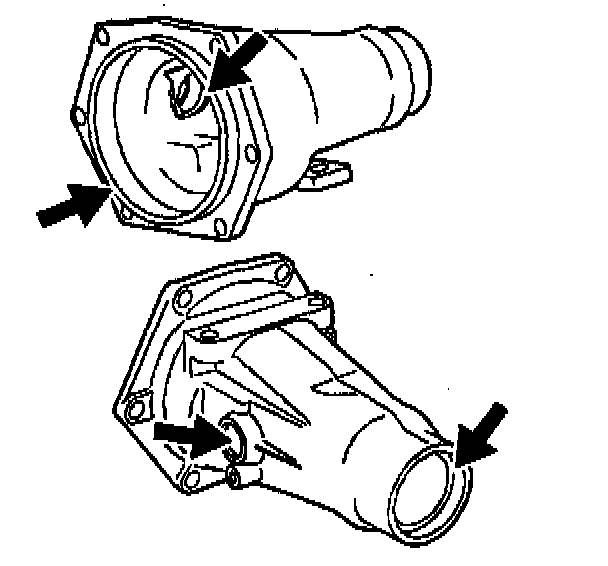

1. Inspect the case extension for the following defects:
^ Nicks
^ Burrs
^ Worn bushings

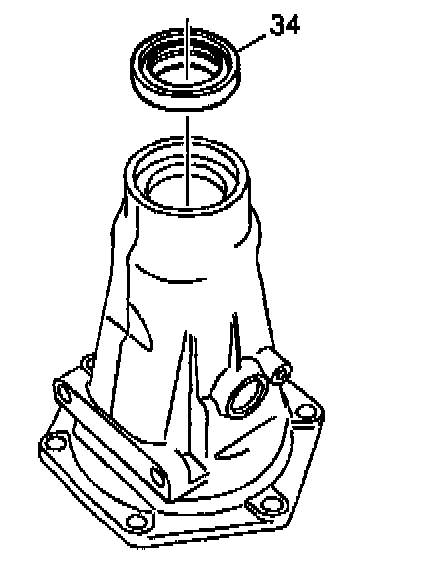

2. Remove the case extension oil seal assembly.

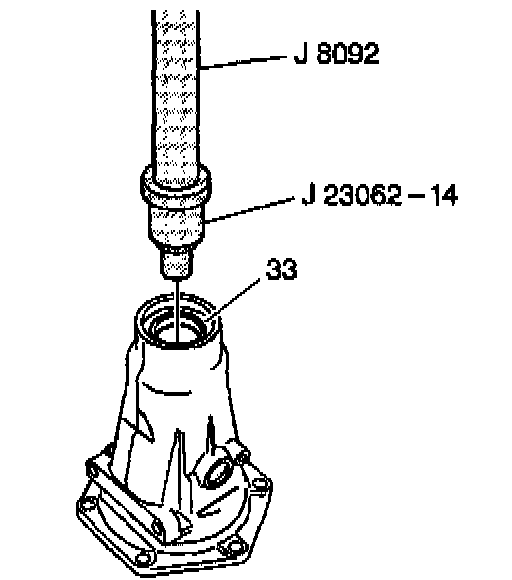

3. Remove the case extension bushing.

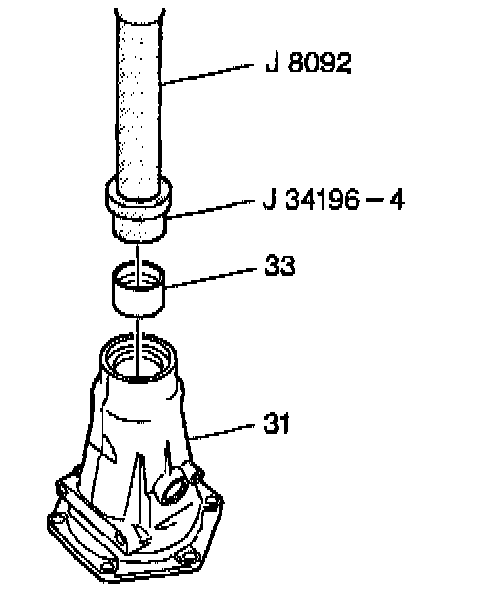

4. Install a case extension bushing.
