Case Bushing

REMOVAL PROCEDURE
^ Tools Required
- J 8092 Driver Handle
- J 34196 Bushing Set

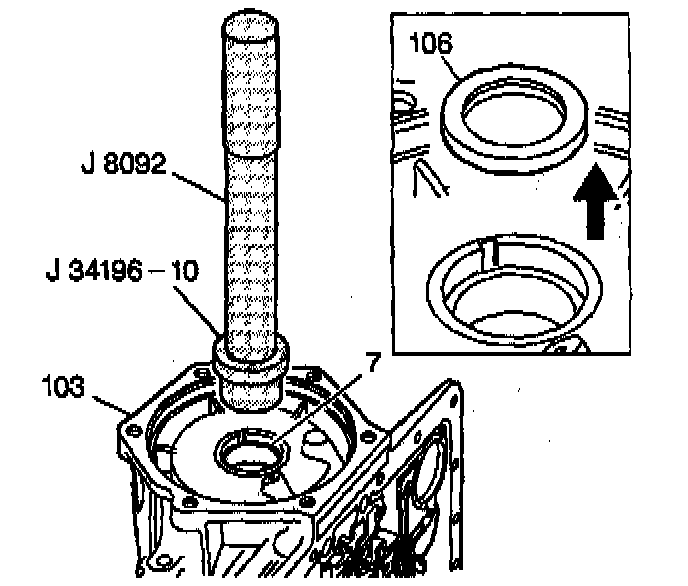

1. Remove the case rear oil seal (106) (Y-car Only).
2. Remove the case bushing (7) using J 8092 and J 34196.

INSTALLATION PROCEDURE
^ Tools Required
- J 8092 Driver Handle
- J 34196 Bushing Set
- J 42198 Case Rear Oil Seal Installer

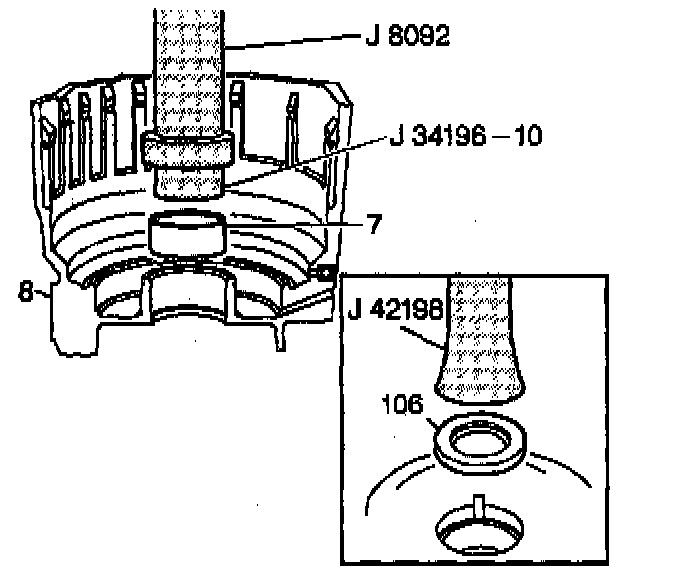

1. Install a case bushing (7) using J 8092 and J 34196.
2. Install a case rear oil seal (106) (Y-car Only) using J 42198.
