2-4 Servo Disassemble #2

REMOVAL PROCEDURE

^ Tools Required
- J 22269-01 Piston Compressor

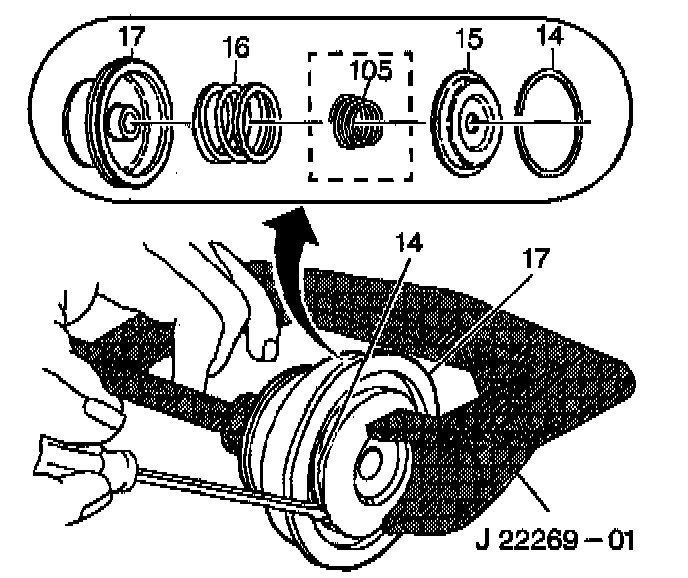

1. Use a piston compressor to compress the second apply piston.
2. Remove the second apply piston retaining ring.
3. Remove the servo cushion spring retainer and the servo cushion spring.
