2-4 Band Assembly Installation

1. Inspect the 2-4 band assembly for damage or wear.

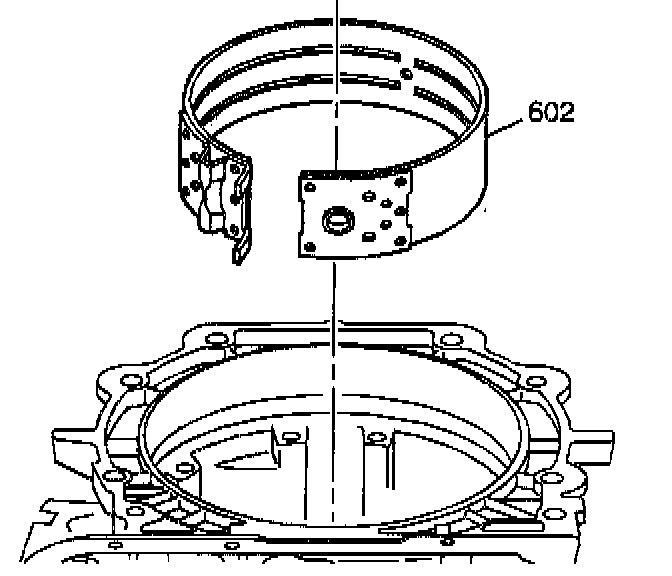

2. Install the 2-4 band into the case.





3. Install the band anchor pin into the case.

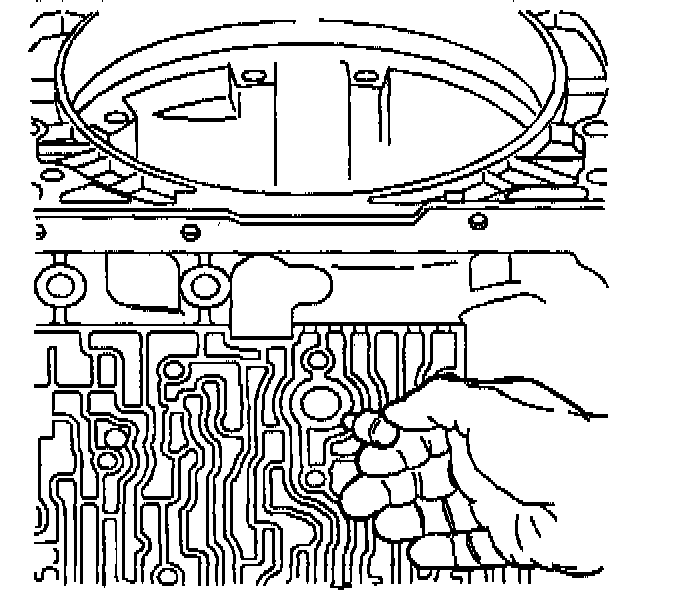

4. Index the band to fit the band anchor pin onto the band.
