Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Component Locations >> Fluid Passages >> Spacer Plate Fluid Passages

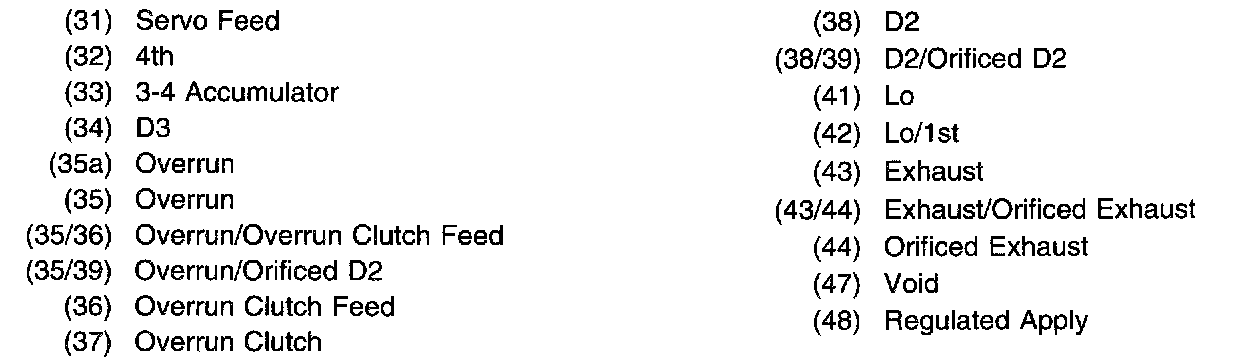

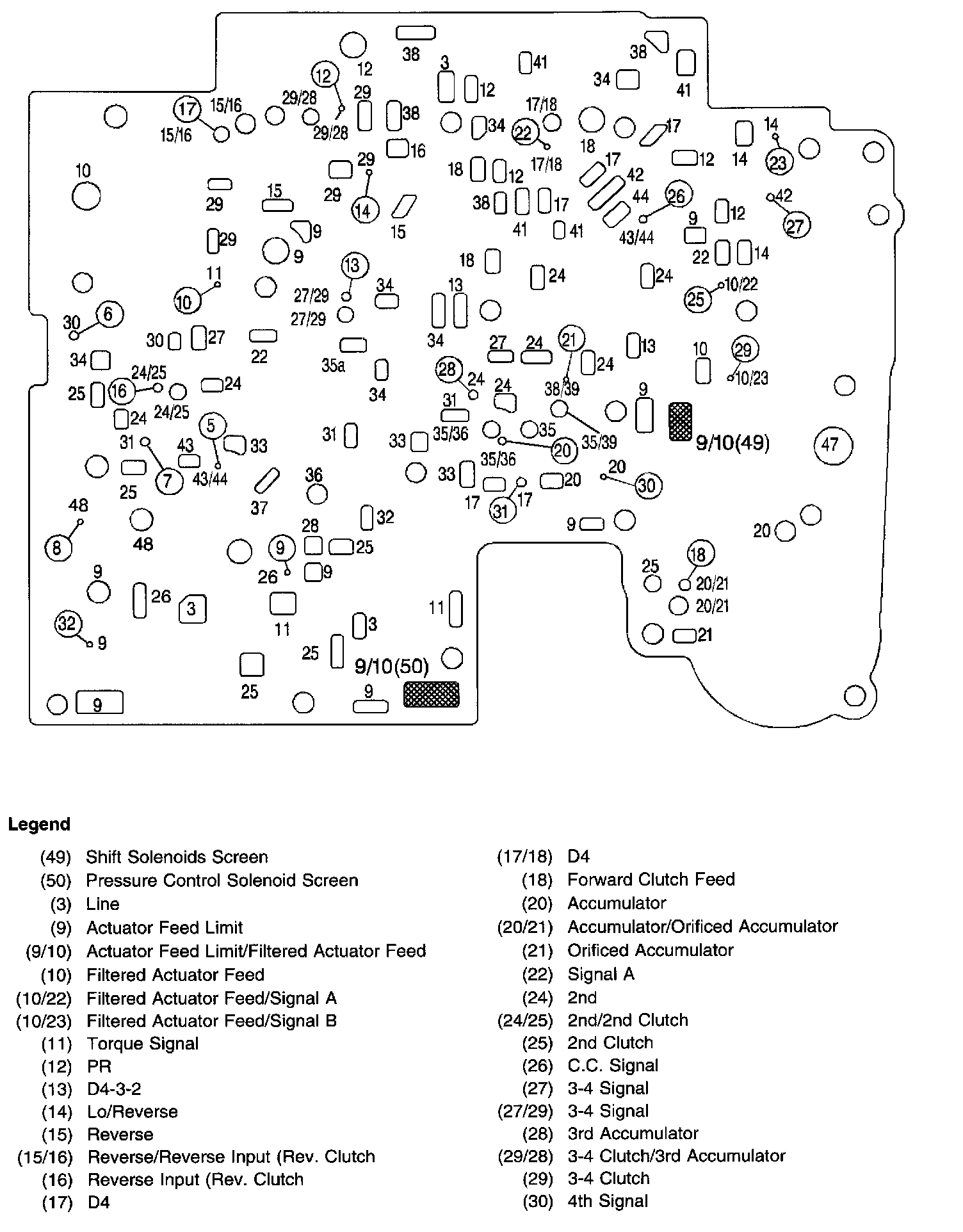

Spacer Plate Fluid Passages

Part 1 Of 2:



Part 2 Of 2:
