Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Component Locations >> Case and Associated Parts

Case and Associated Parts

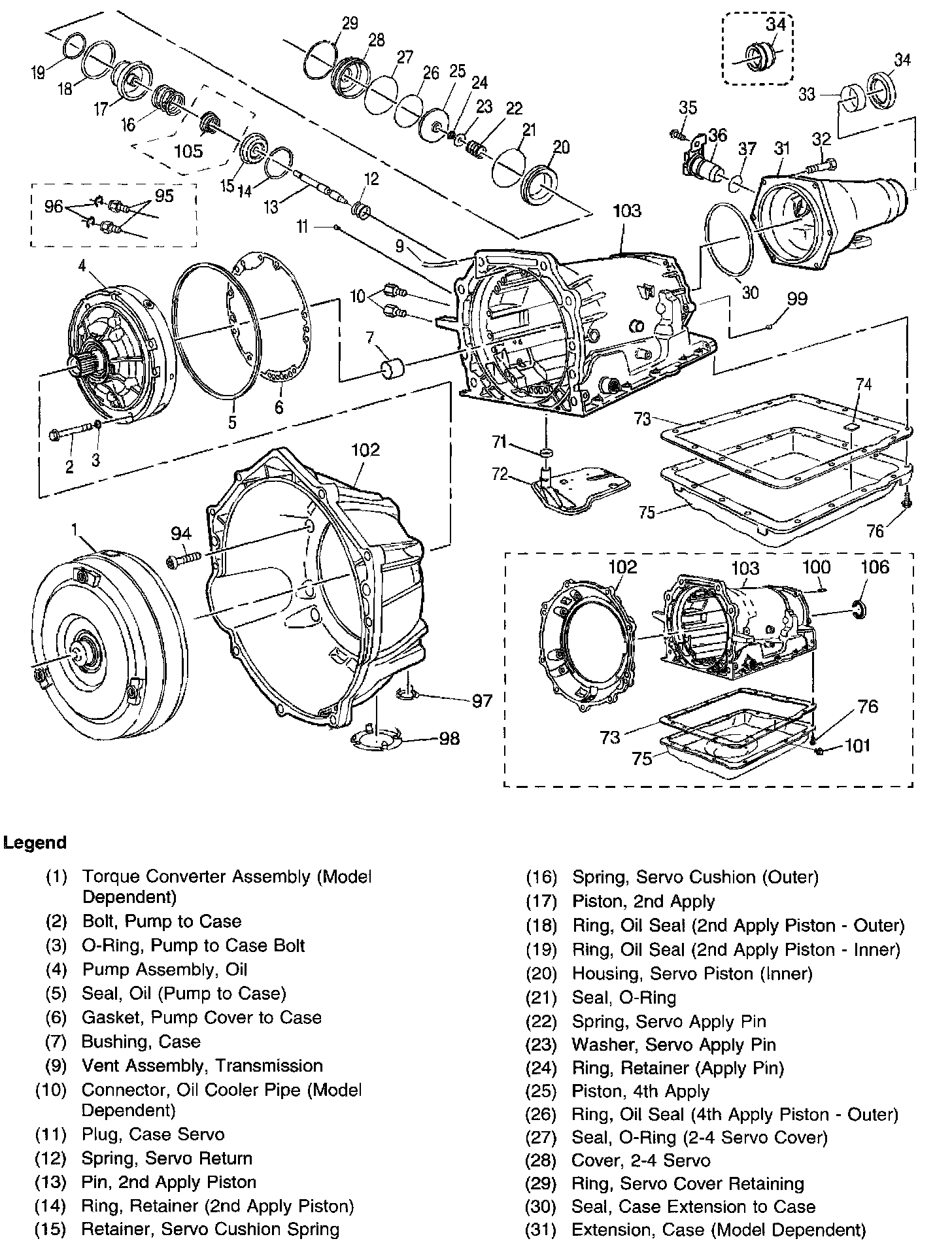

Part 1 Of 2:

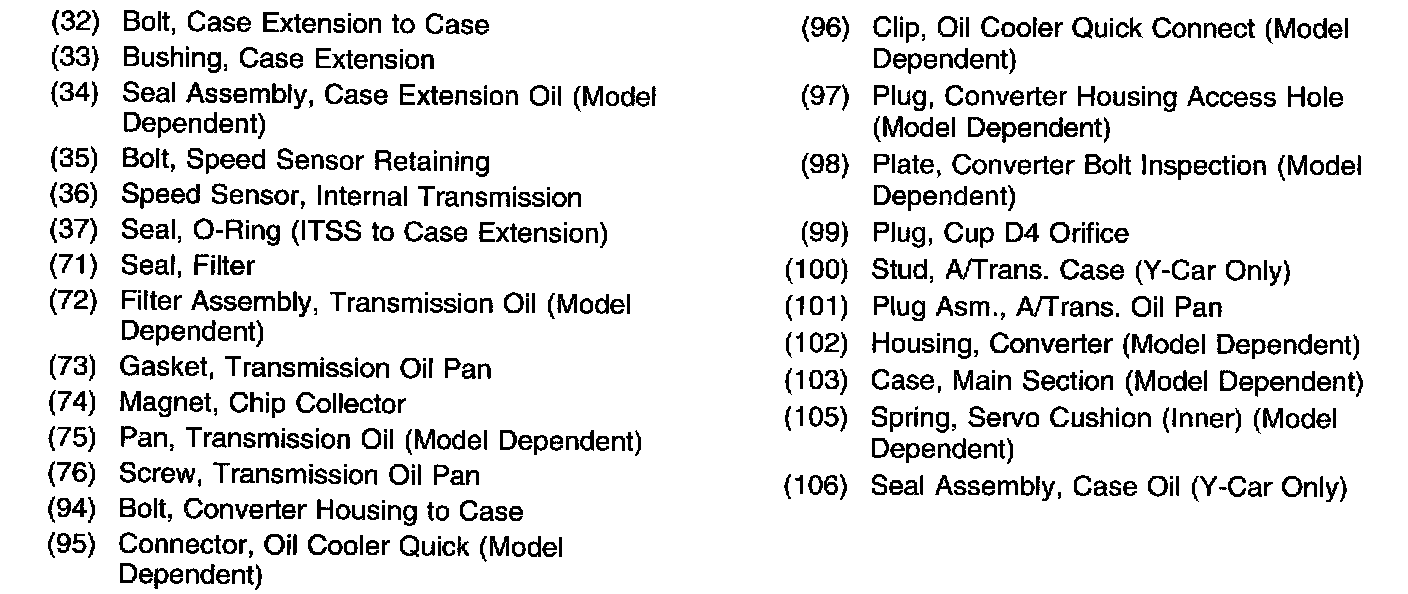

Part 2 Of 2:

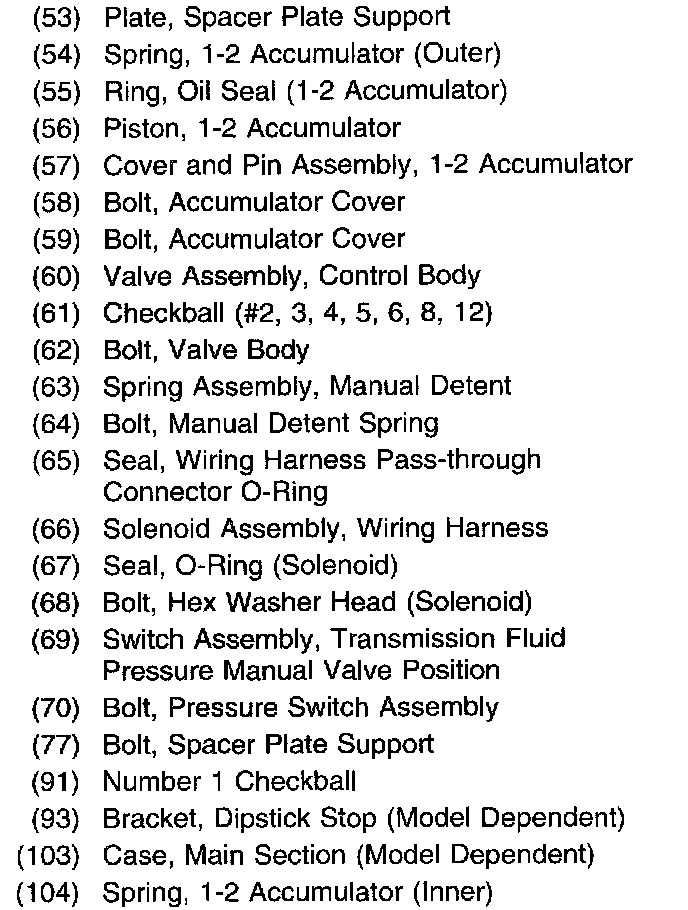

Part 1 Of 2:

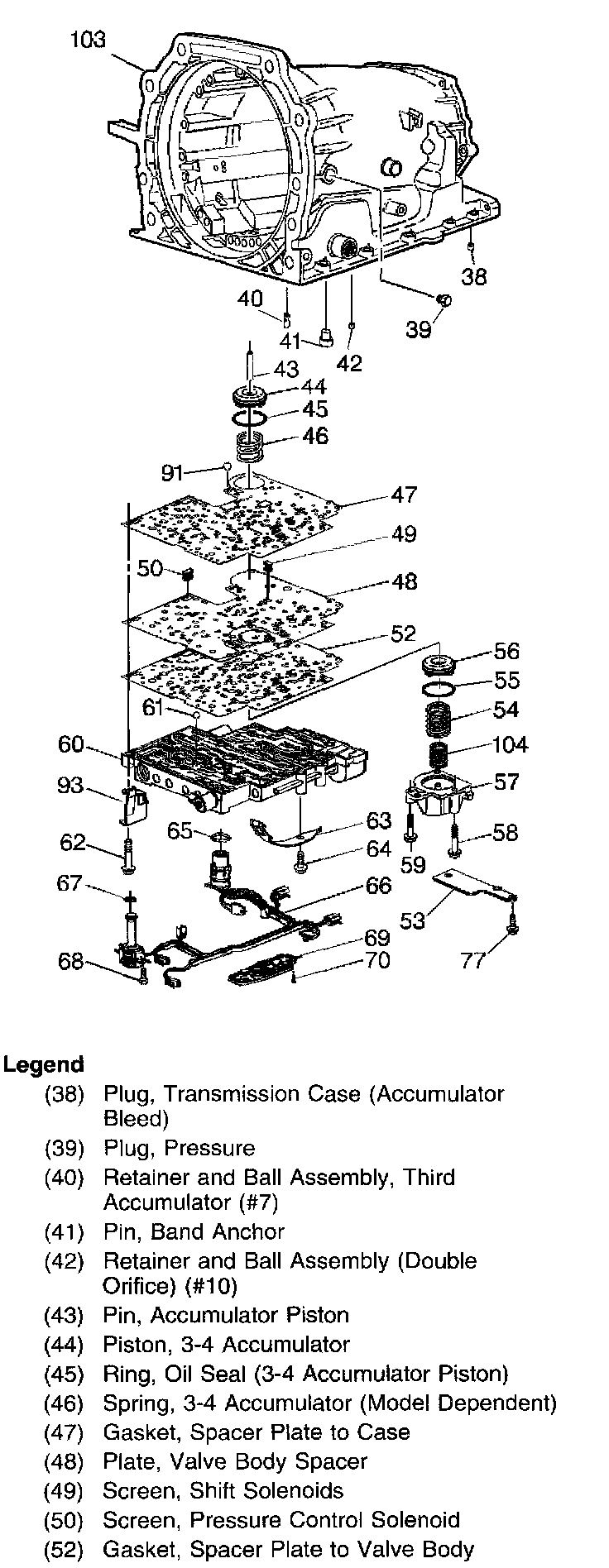

Part 2 Of 2:
