Automatic Transmission Dipstick - Dipstick Tube: Service and Repair

REMOVAL PROCEDURE

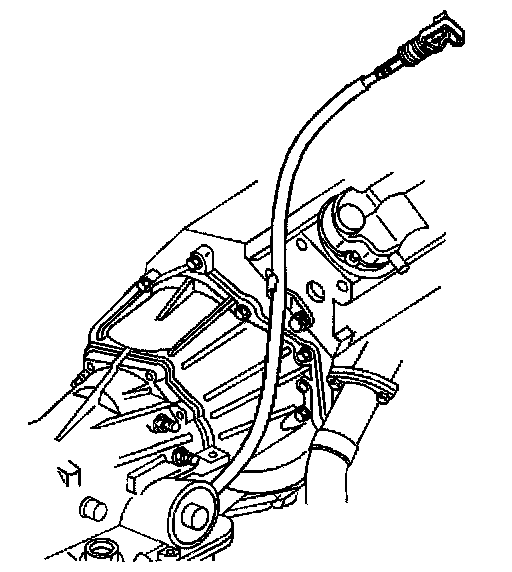

1. Remove the fluid level indicator.

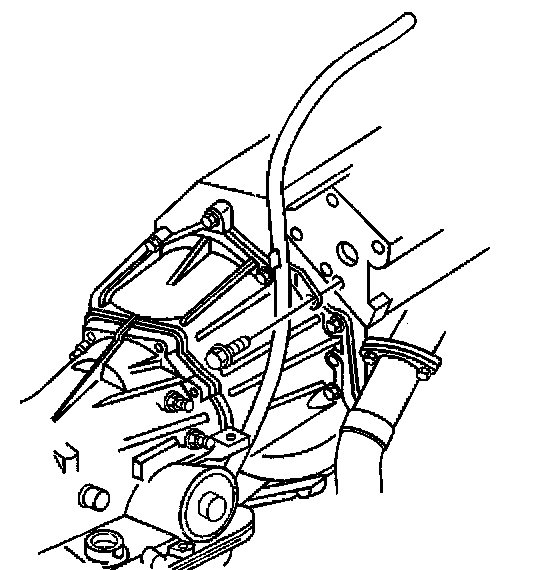

2. Remove the transmission bolt attaching the fill tube to the transmission.
3. Remove the transmission.

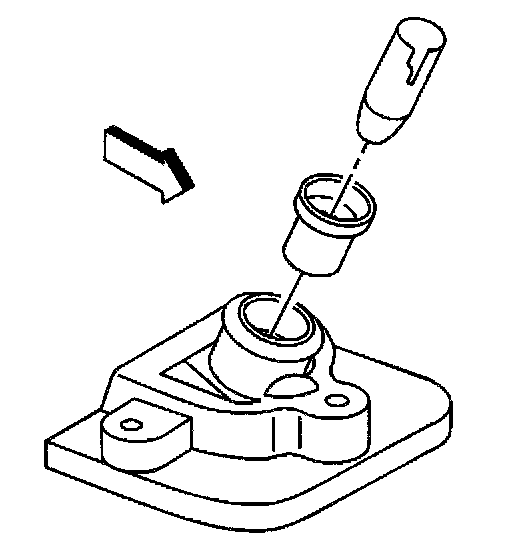

4. Remove the fill tube and seal from the transmission.

INSTALLATION PROCEDURE

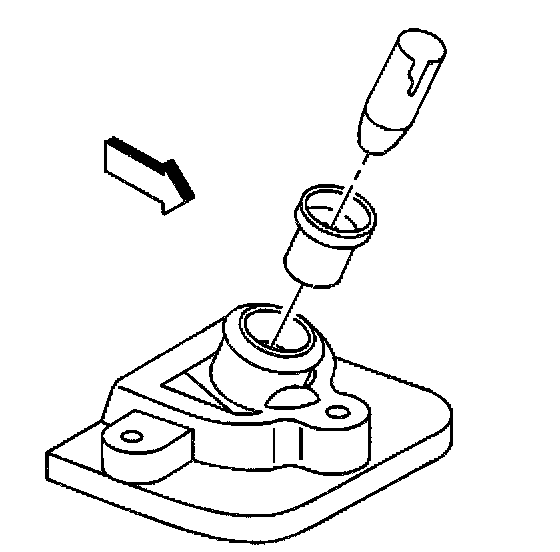

1. Insert the seal into the automatic transmission case hole.
2. Install the fill tube to the transmission.
3. Install the transmission.

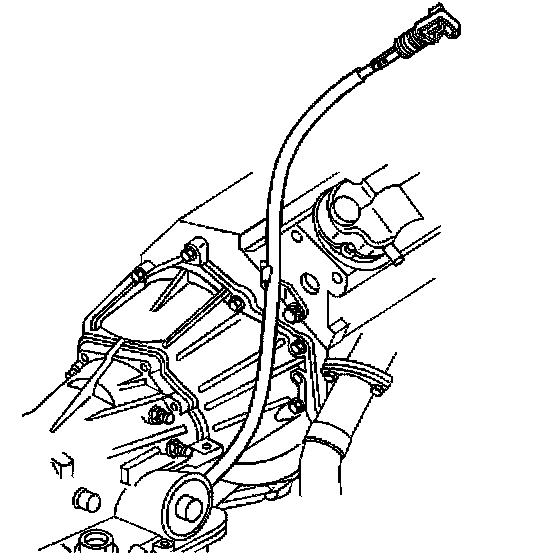

4. Install the transmission bolt attaching the fill tube to the transmission.
^ Tighten the transmission bolt to 47 Nm (35 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.





5. Install the fluid level indicator.
6. Check the transmission fluid.
