Vehicle Leads/Pulls

Vehicle Leads/Pulls - Part 1 Of 2:

Lead/pull is the deviation of the vehicle from a straight path on a level road with no pressure on the steering wheel. Lead is usually caused by the following conditions:
^ Poor tire construction
^ Uneven brake assemblies
^ Improper tire and wheel alignment In the front tires (rear tires will not cause lead)

Tire construction can be a cause of lead in a vehicle. An example of this is placement of the belt. Off-center belts on radial tires can cause the tire to develop a side force while rolling straight down the road, and the tire will tend to roll like a cone.

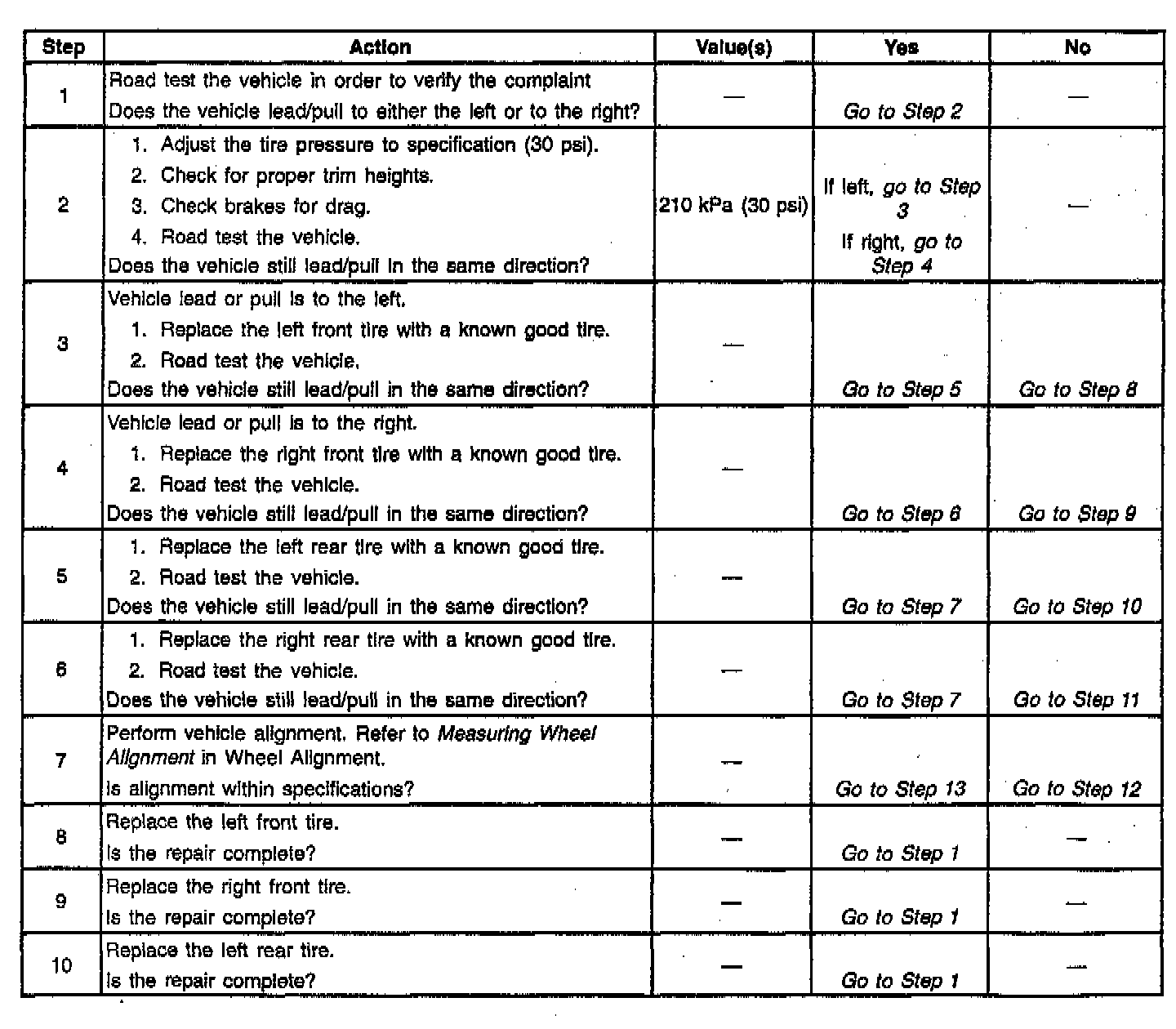

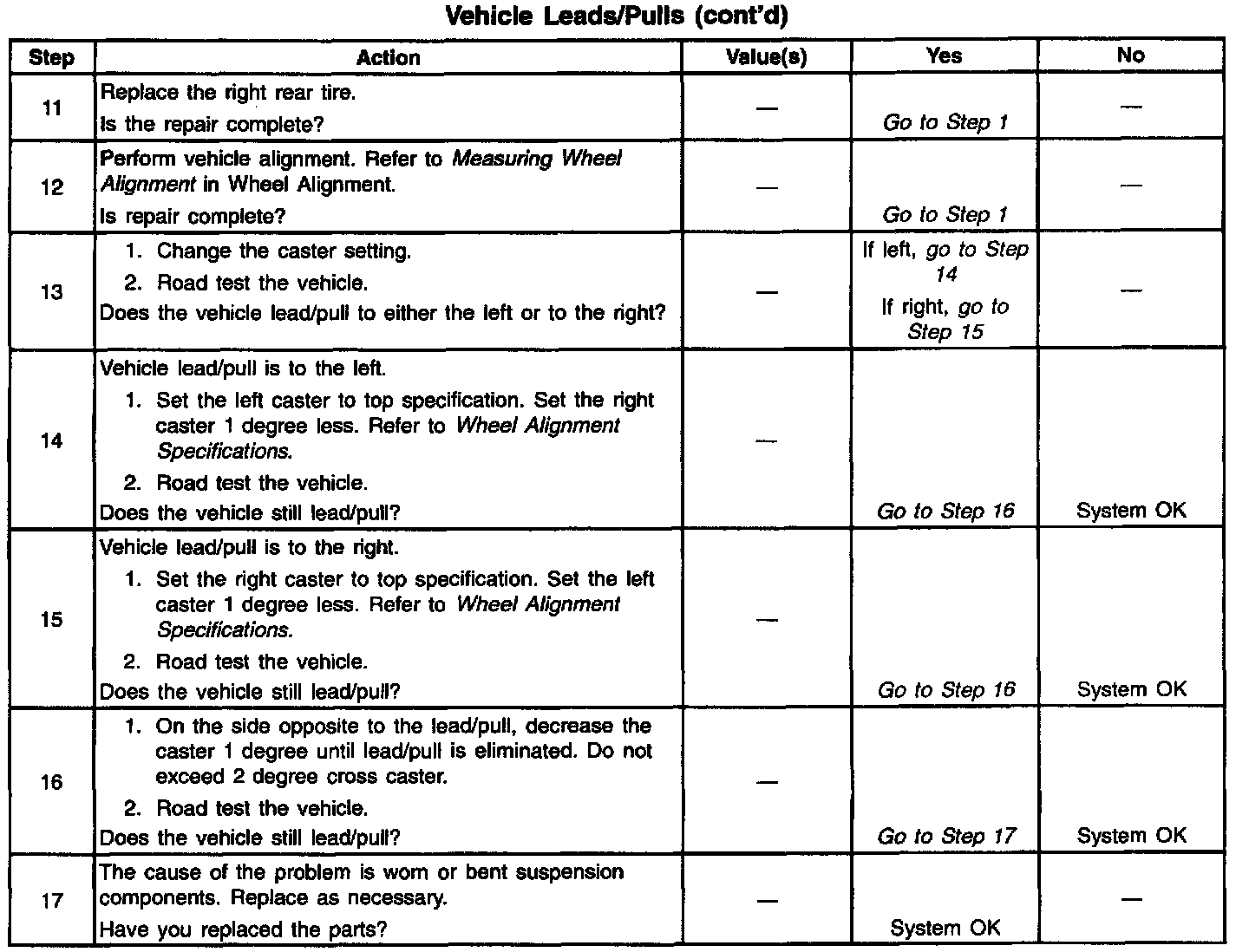

Use the lead/pull correction table in order to verify that improper tire and wheel alignment is not mistaken for tire lead.
