Rear Suspension

REMOVAL PROCEDURE
1. Fold down the seatback frame.
2. Remove the quarter trim panel.
3. Pull the folding carpet back.

NOTICE: The rear axle must be supported before removing the nut in order to avoid possible damage to the break hose lines, the tie rod and the propeller shaft.

4. Raise and suitably support the vehicle.

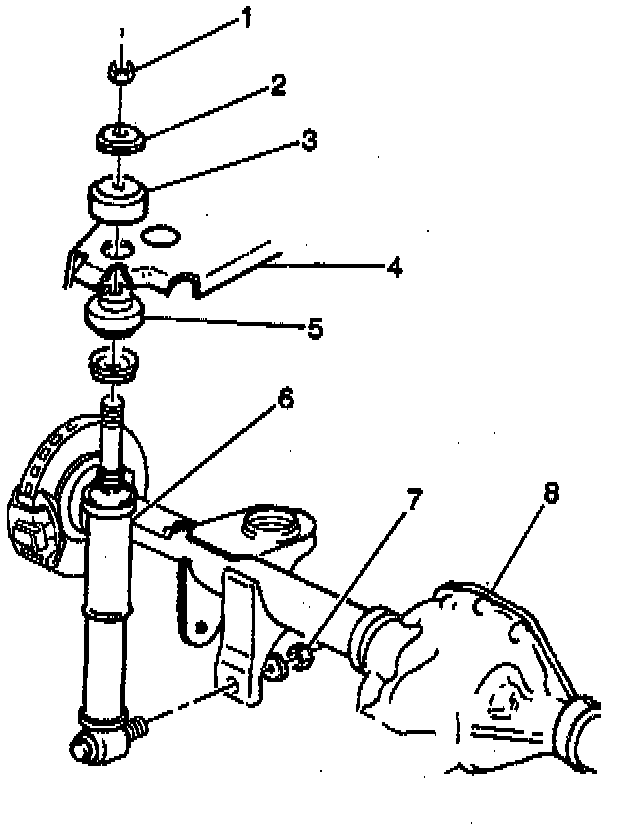

5. Support the rear axle (8).
6. Remove the nut (1).
7. Remove the retainer (2) and the upper insulator (3).
8. Remove the retainer (2) and the lower insulator (5).
9. Remove the nut (7) from the rear axle (3).
10. Remove the shock absorber (6).

INSTALLATION PROCEDURE
1. Position the shock absorber (6) to the rear axle (8).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

2. Install the nut (7).

Tighten
Tighten the nut (7) to 90 Nm (66 ft. lbs.).

3. Install the lower insulator (5) and the retainer (2) to the shock absorber (6).
4. Position the shock absorber (6) through the underbody pan and seat the insulator.
5. Install the upper insulator (3) and the retainer (2) to the shock absorber (6).

NOTICE: Turning the shock absorber while tightening the nut could damage the shock absorber. In order to prevent damage, keep the shock absorber stationary while you tighten the nut.

6. Hand start the nut (1).

Tighten
Tighten the nut (1) to 17 Nm (13 ft. lbs.).

7. Remove the rear axle support.
8. Lower the vehicle.
9. Pull the folding carpet down into position.
10. Install the quarter trim panel.
11. Fold the seatback frame into an upright position.
