Coil Spring Replacement

REMOVAL PROCEDURE

Important: When raising the vehicle, support the vehicle by the frame, allowing the suspension to fully extend (unloaded).

1. Raise and suitably support the vehicle.

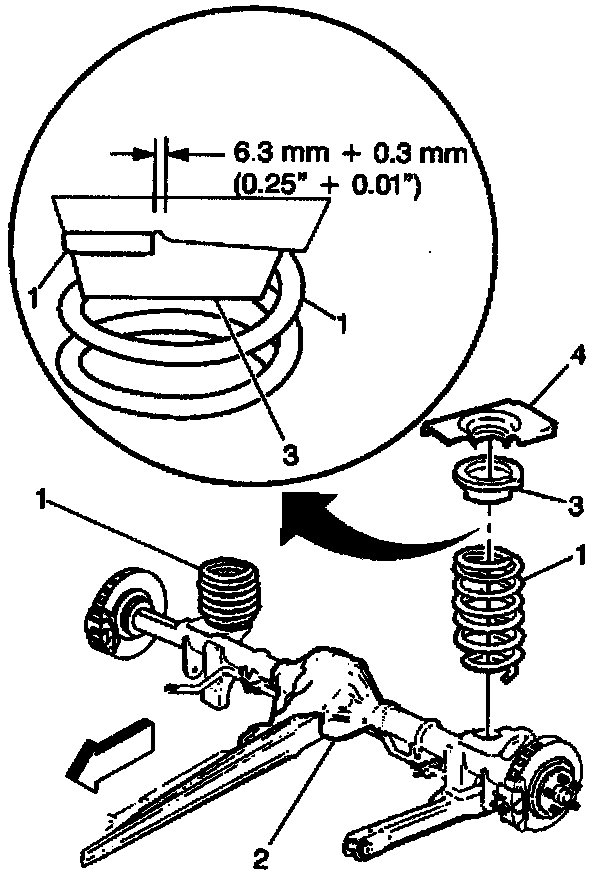

2. Support the rear axle (2) with an adjustable lifting device.
3. Remove the shock absorber nuts from the rear axle.

NOTICE: Do not suspend rear axle by brake hoses. Damage to hoses could result.

4. Lower the rear axle (2)
5. Remove the upper insulator (3).
6. Remove the rear spring (1).

INSTALLATION PROCEDURE

Important: The lower end of the rear spring should be facing forward. Do not chip or damage the corrosion protection coating on the rear spring. Avoid contact with hard steel. If the coating is chipped or damaged, replace the rear spring.

1. Install the rear spring (1) to the rear axle (2).
2. Install the upper insulator (3) to the rear spring (4)
3. Raise the rear axle (2).
4. Install the shock absorber nuts to the rear axle.
5. Remove the rear axle support.
6. Lower the vehicle.
