Coil Spring Insulators Replacement

REMOVAL PROCEDURE

Important: When raising the vehicle, do not use twin post type hoists.

1. Raise and suitably support the vehicle.
2. Support the rear axle (2) with an adjustable lifting device.
3. Remove the shock absorber nuts from the rear axle.
4. Lower the rear axle (2).

INSTALLATION PROCEDURE

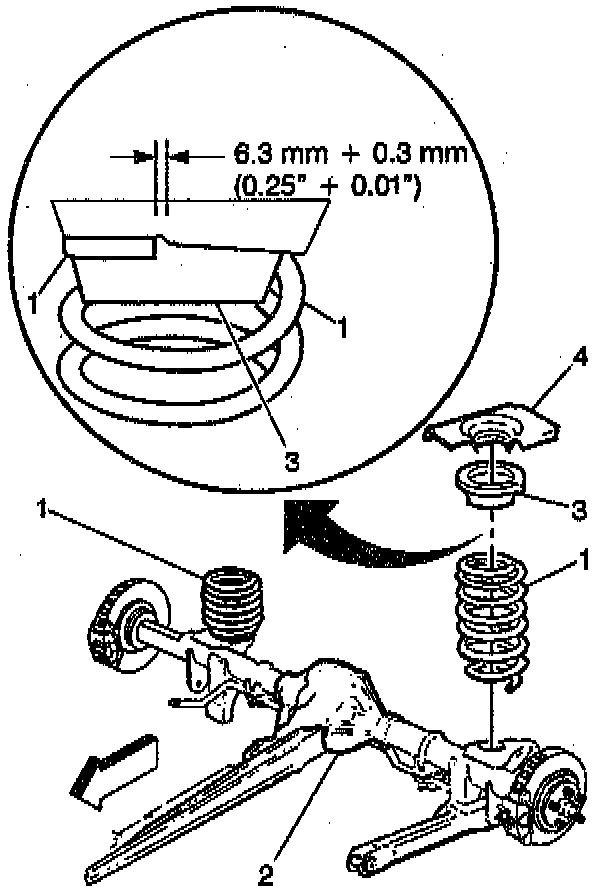

1. Position the spring seat (4)
2. Install the rear spring and the upper insulator.
3. Raise the rear axle (2).
4. Install the shock absorber nut to the rear axle.
5. Remove the rear axle support.
6. Lower the vehicle.
