Front Suspension

REMOVAL PROCEDURE
1. Raise and support the vehicle.

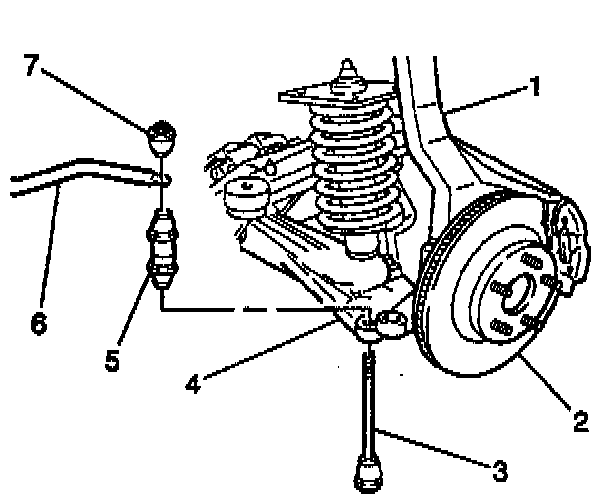

2. Remove the nut (7).
3. Remove the link (3).

INSTALLATION PROCEDURE
1. Install the sleeve (5) between the lower control arm (4) and the stabilizer shaft (6).
2. Install the link (3) through the lower control arm (4), the sleeve (5), and the stabilizer shaft (6).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

3. Install the nut (7)

Tighten
Tighten the nut (7) to 23 Nm (17 ft. lbs.).

4. Lower the vehicle.
