Rear Suspension

REMOVAL PROCEDURE
1. Raise and suitably support the vehicle.





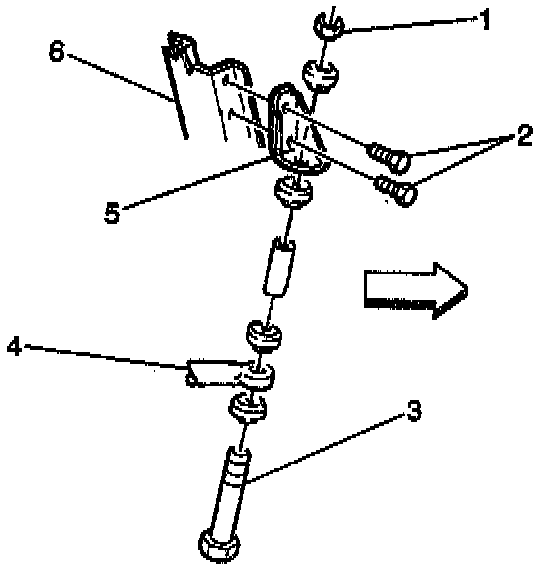

2. Remove the nut (1).
3. Remove the link (3).

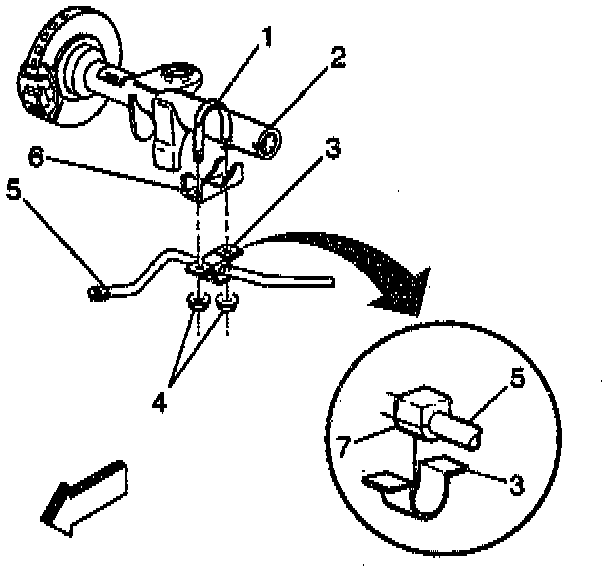

4. Remove the bolts and screws (1) and the nuts (4).
5. Remove the clamp (3).
6. Remove the insulator (7).
7. Remove the bracket (6).
8. Remove the stabilizer shaft (5).

INSTALLATION PROCEDURE

Important: Install the rear stabilizer shaft with the bend of the shaft facing down.

Important: The slit of the shaft insulator must face the rear of the vehicle.

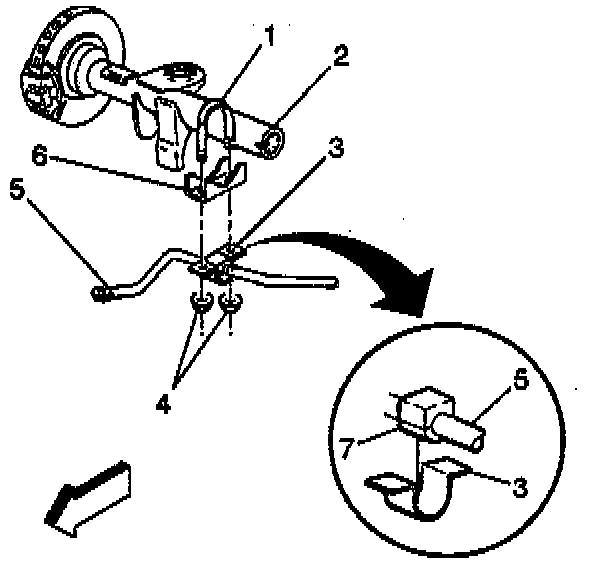

1. Place the insulator (7) over the stabilizer shaft (5).
2. Position the clamp (3) to the insulator (7) and the stabilizer shaft (5).
3. Position the bracket (6) to the rear axle (2).
4. Install the bolts and screws (1) and the nuts (4).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

5. Install the stabilizer shaft link nut.

Tighten
Tighten the nuts (4) to 24 Nm (18 ft. lbs.).

6. Install the link. Refer to STABILIZER LINK REPLACEMENT.
7. Lower the vehicle.
