Front Suspension

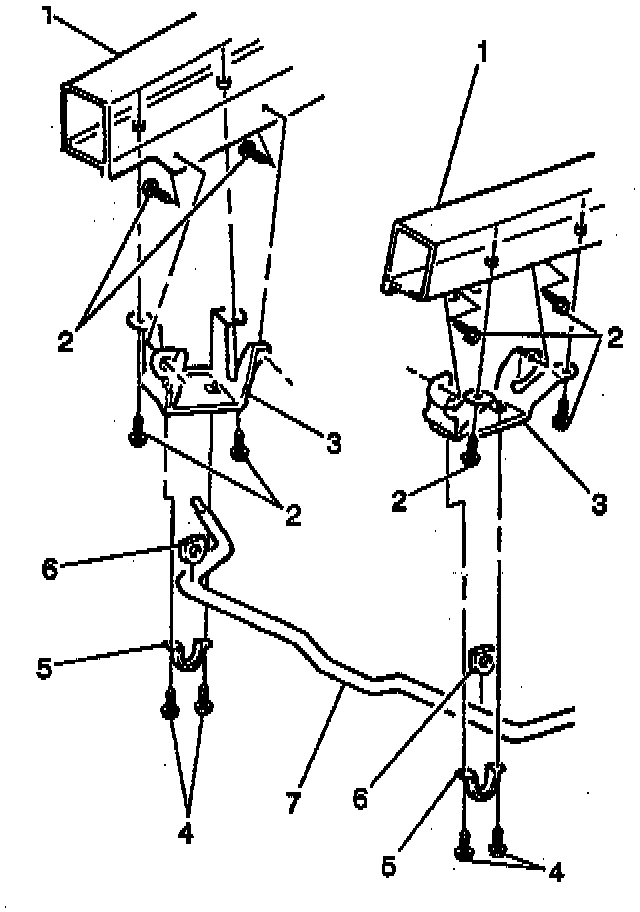

REMOVAL PROCEDURE
1. Raise and support the vehicle.
2. Remove the stabilizer shaft link.
3. Remove the bolts (4).
4. Remove the clamps (5).
5. Remove the stabilizer shaft (7).
6. Remove the insulators (6).
7. Remove the bolts (2).
8. Remove the brackets (3).

INSTALLATION PROCEDURE
1. Position the brackets (3) to the side rail.

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

2. Hand start the bolts (2).

Tighten
Tighten the bolts to 55 Nm (41 ft. lbs.).

Important: The slit of the insulator must face the front of the vehicle.

3. Place the insulators (6) over the stabilizer shaft (7).
4. Position the clamps (5) over the insulators at the stabilizer shaft (7).
5. Install the bolts.

Tighten
Tighten the bolts to 55 Nm (41 ft. lbs.).

6. Install the stabilizer shaft link.
7. Lower the vehicle.
