Lateral Stabilizer Rod: Service and Repair

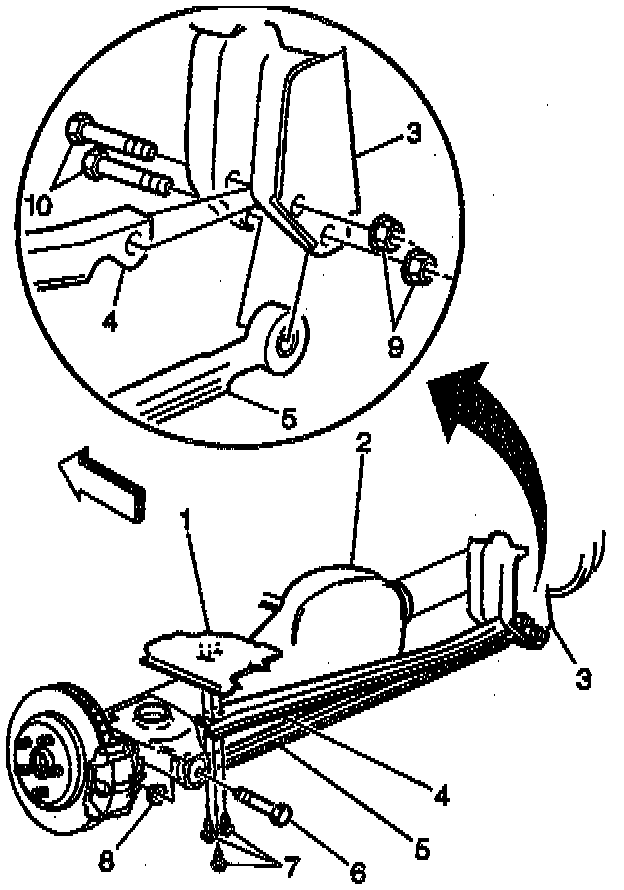

REMOVAL PROCEDURE
1. Raise and suitably support the vehicle.
2. Support the rear axle (2).
3. Remove the bolt or screw (6) and the nut (8).
4. Remove the bolts and screws (7 and 10) and the nuts (9).
5. Remove the tie rod (5).
6. Remove the brace (4).

INSTALLATION PROCEDURE
1. Position the brace (4) to the right-hand underbody brace bracket.
2. Hand tighten the bolt or screw (10) and the nut (9).
3. Position the tie rod (5) to the right-hand underbody brace bracket.
4. Hand tighten the other bolt or screw (10) and the other nut (9).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

5. Install the bolts and screws (7 and 10) and the nuts (9).

Tighten
^ Tighten the bolts and screws (7) to 47 Nm (35 ft. lbs.).
^ Tighten the nuts (9) to 82 Nm (61 ft. lbs.).

6. Install the bolt or screw (6) and the nut (8).

Tighten
Tighten the nut (8) to 82 Nm (61 ft. lbs.).

7. Install the rear axle support.
8. Lower the vehicle.
