Rear Suspension

REMOVAL PROCEDURE
^ Tools Required:
- J 21474-5 Receiver
- J 21474-20 Installer
- J 21474-23 Remover

Important: If you are replacing both lower control arms, remove and replace one control arm at a time in order to prevent the rear axle from rolling or slipping sideways.

1. Raise and suitably support the vehicle.
2. Support the rear axle.
3. Remove the Lower Control Arm.





4. Place J 21474-5 over the flanged side of the bushing.

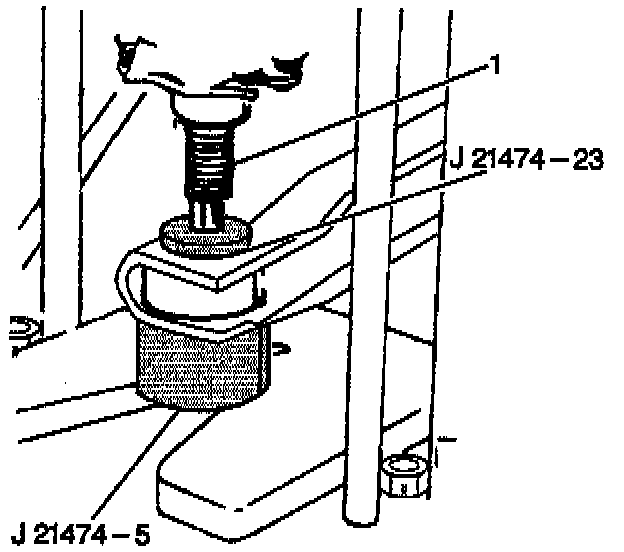

5. Using the arbor press, place the large outside diameter of the J 21474-23 in contact with the outside diameter of the outer sleeve in order to force the bushing out of the arm.

INSTALLATION PROCEDURE
1. Install the reverse tool.





2. Place J 21474-5 over the flanged side of the bushing.

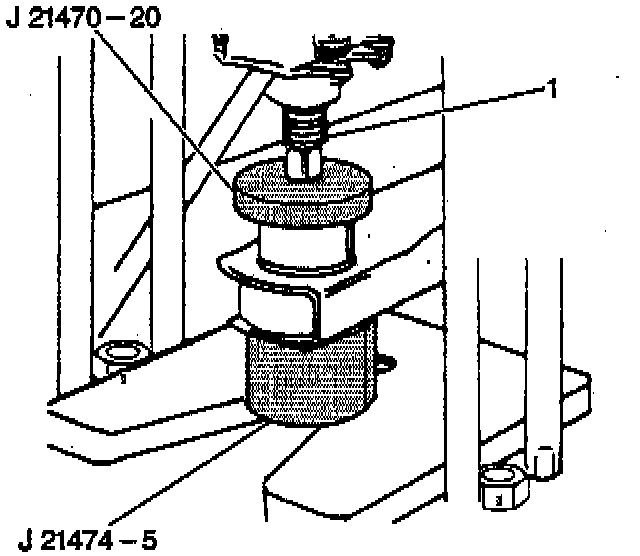

3. Install the bushing into position using J 21474-20.
4. Install the lower control arm.
5. Remove the rear axle support.
6. Lower the vehicle.
