Ignition Lock Cylinder

REMOVAL PROCEDURE




1. Remove the inflatable restraint coil.

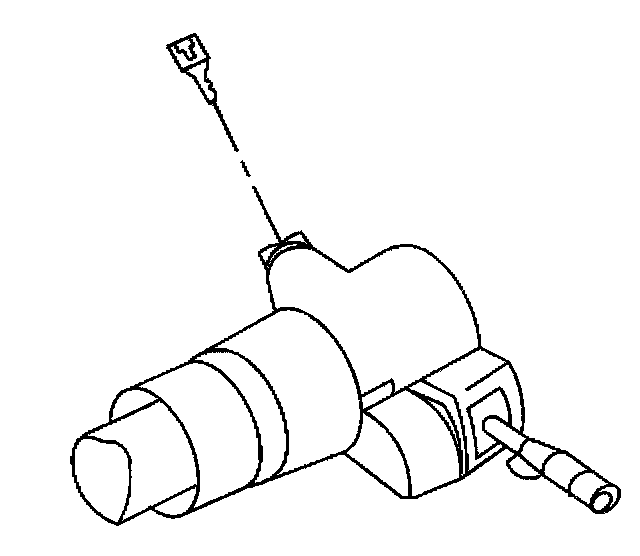

2. Insert the ignition key into the lock cylinder.
3. Leave the key in the LOCK position 4.

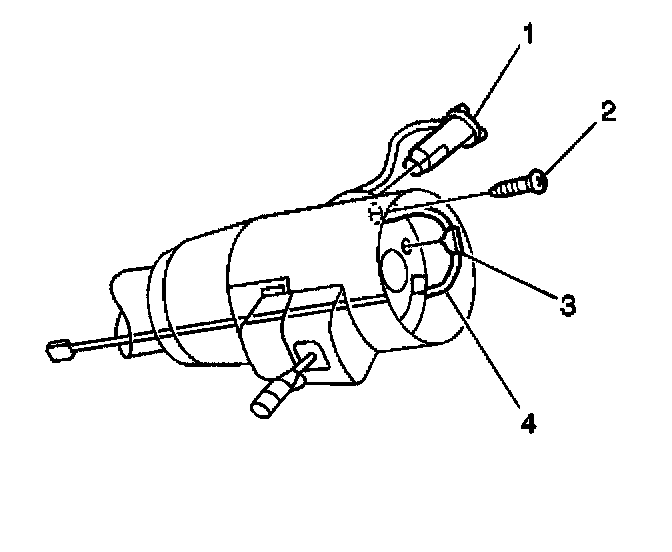

4. Remove the lock retaining screw (2).
5. Remove the lock cylinder (1) and harness (4), perform the following:
^ Disconnect the terminal connector from the bulkhead connector.
^ Remove the wiring protector.
^ Disconnect the retaining clip (3) from the lock housing cover sleeve.
^ Gently pull wire harness (4) through the column.
^ Remove the lock cylinder (1) from the vehicle.

INSTALLATION PROCEDURE




1. Install the lock cylinder (1) and harness (4), perform the following:
^ Install the lock cylinder (1) to the vehicle.
^ Gently pull wire harness (4) through the column.
^ Connect the retaining clip (3) to the lock housing cover sleeve.
^ Install the wiring protector.
^ Connect the terminal connector to the bulkhead connector.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the lock retaining screw (2).

Tighten
Tighten the lock retaining screw to 2.5 N.m (22 lb in).




3. Remove the ignition key from the lock cylinder.
4. Install the inflatable restraint coil.
