Drive Shaft Seal (Without Disassembly of Pump)

^ Tool Required:
- J 7728 Shaft Oil Seal Installer

REMOVE OR DISCONNECT
1. Pump assembly from vehicle, if necessary for access.

Shaft Seal Removal:

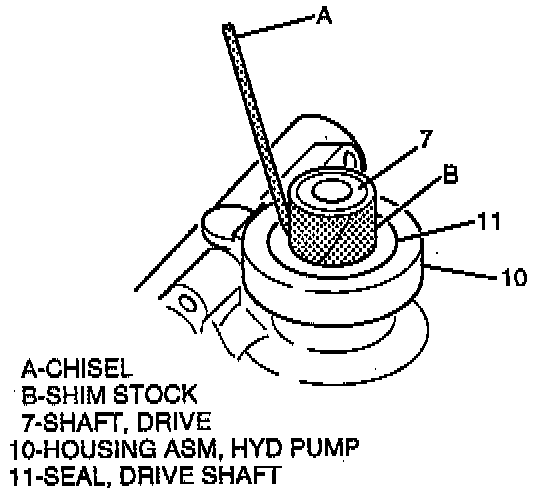

2. Protect drive shaft (7) with shim stock.
3. Seal (11) and discard. (Use small chisel to cut drive shaft seal.)

INSTALL OR CONNECT

Seal Installation:

1. New drive shaft seal (11), lubricated with power steering fluid, using tool J 7728.
2. Pump assembly to vehicle, if removed.
