Control Valve Assembly

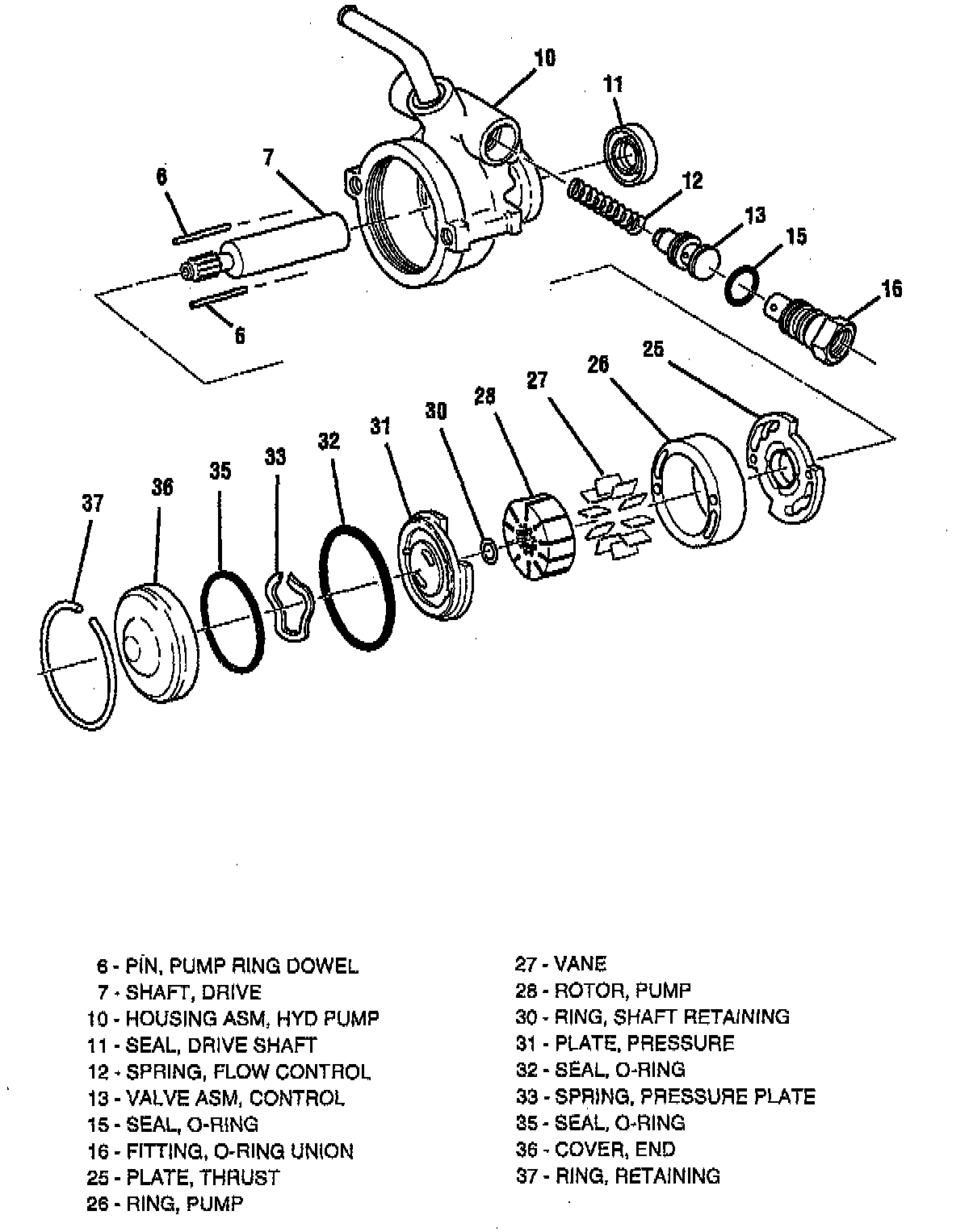

Power Steering Pump Assembly - CB Series:

REMOVE OR DISCONNECT
1. Pump assembly from vehicle, if necessary for access.
2. O-ring union fitting (16) and O-ring (15).
3. Control valve assembly (13).
4. Flow control spring (12).

INSTALL OR CONNECT
1. Flow control spring (12).
2. Control valve assembly (13).
3. O-ring (15) on fitting (16).
4. Fitting (16) into hydraulic pump housing assembly (10).

Tighten
^ Fitting (16) to 75 Nm (55 ft. lbs.).

5. Pump assembly to vehicle, if removed.
