On-Vehicle Service

REMOVE OR DISCONNECT
1. Place drain pan under pump (32).
2. Raise and suitably support vehicle.
3. Drain engine coolant.
4. Serpentine belt.
5. Lower vehicle.
6. Front air intake duct.
7. Generator.
8. Radiator outlet hose from engine.
9. Heater inlet and outlet hoses from water pump.
10. Throttle body heater return from heater outlet hose.
11. Bolts/screws (21).
12. Inlet and reservoir hoses from pump. Refer to "Power Steering Line/Hose".
13. Pump (32).

INSTALL OR CONNECT

NOTICE: Do not start the vehicle with any power steering gear inlet or outlet hoses disconnected. When disconnected, cap or plug all openings of components. Failure to do so could result in contamination or loss of power steering fluid and damage to the system.

1. Inlet and reservoir hoses to pump. Refer to "Power Steering Line/Hoses".

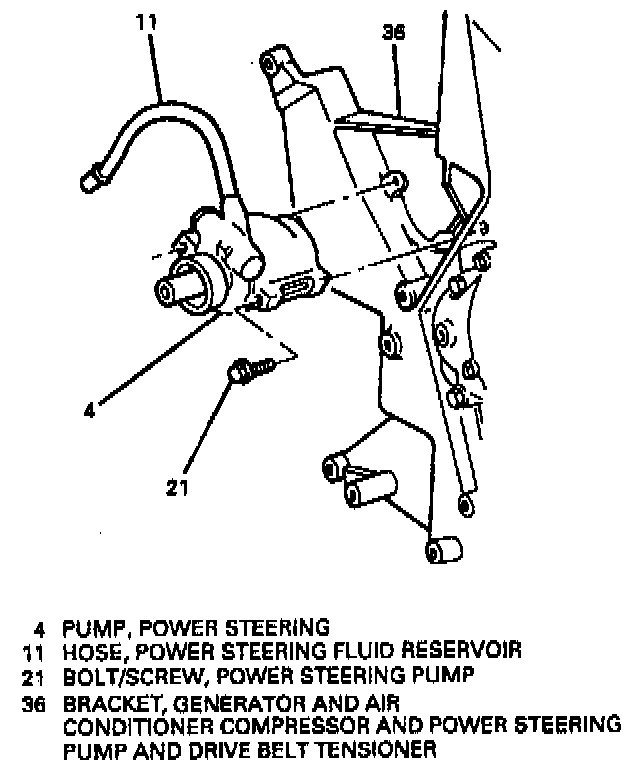

2. Position pump (30) to bracket (36).
3. Bolts/screws (21).
^ Tighten bolts/screws (21) to 25 Nm (18 ft. lbs.).
4. Throttle body heater return hose to heater outlet hose.
5. Heater inlet and outlet hoses to water pump.
6. Radiator outlet hose to engine.
7. Generator.
8. Front air intake duct.
9. Raise and suitably support vehicle.
10. Serpentine belt.
11. Lower vehicle.
12. Refill and bleed engine coolant system.
13. Refill and bleed power steering system. Refer to "Bleeding Air from the Power Steering System".Service and Repair
