Camaro V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G200
G200

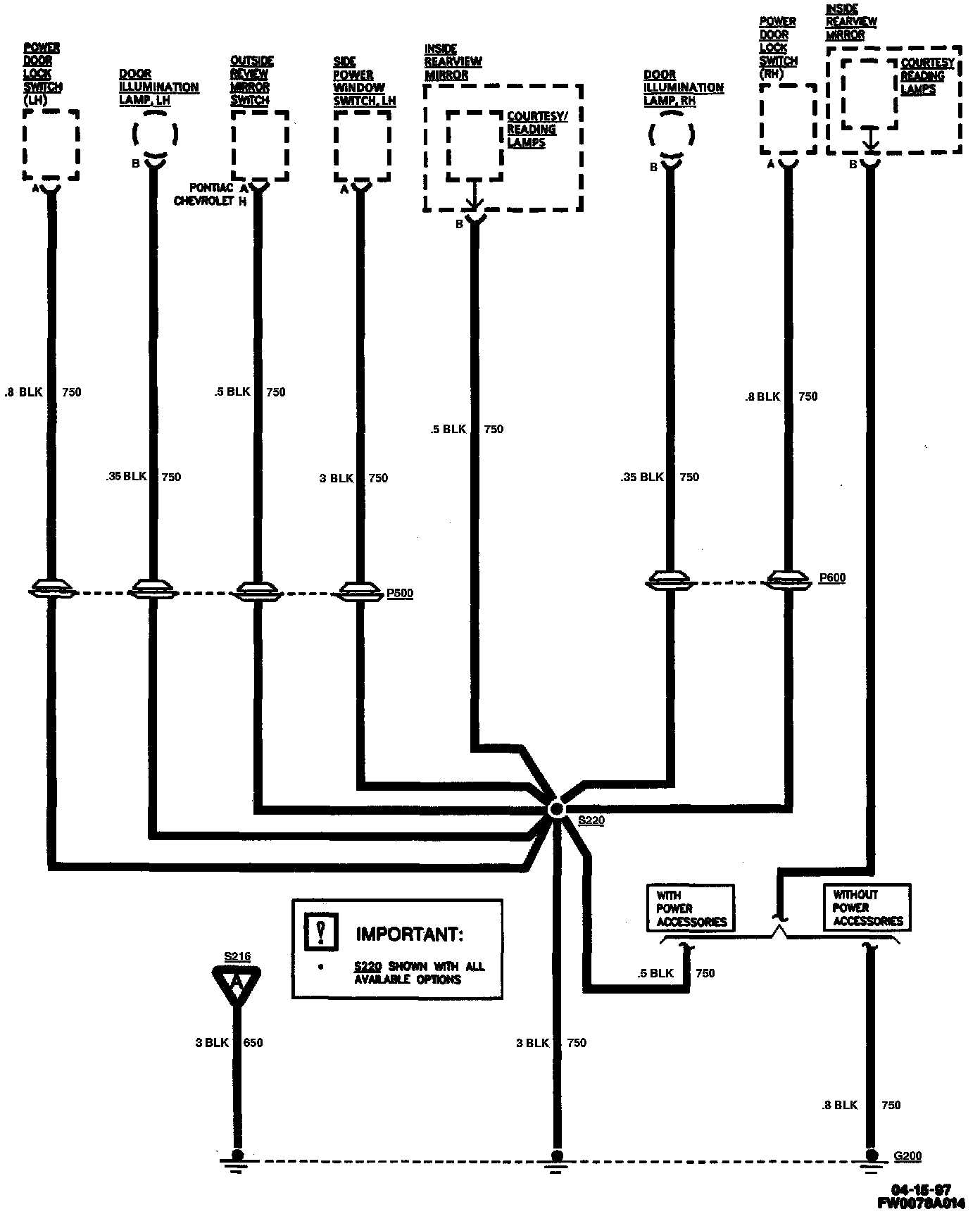

G200: Power Doors, Locks, Mirrors And Windows:

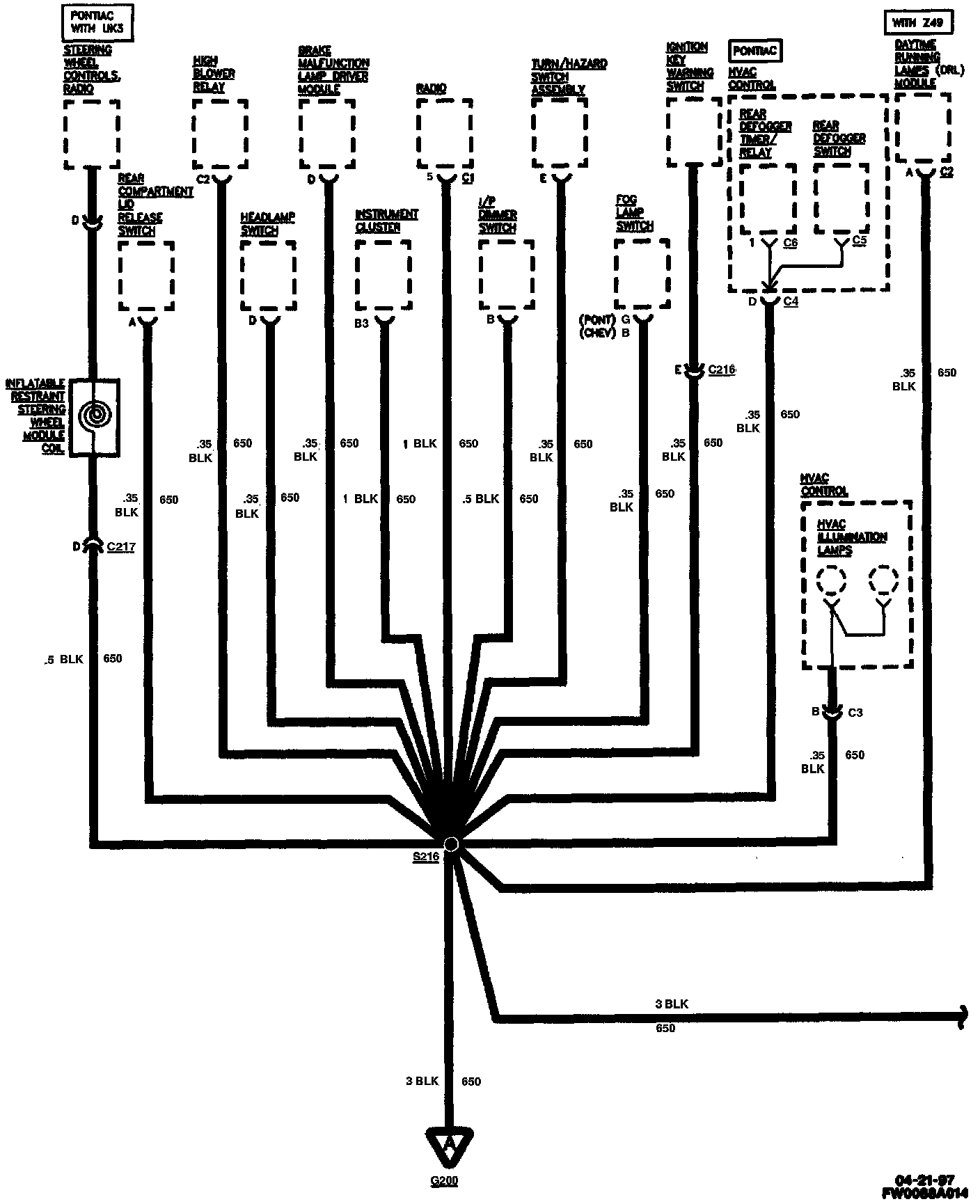

G200: DRL, HVAC Control Assembly, Light Switches And Rear Defogger:

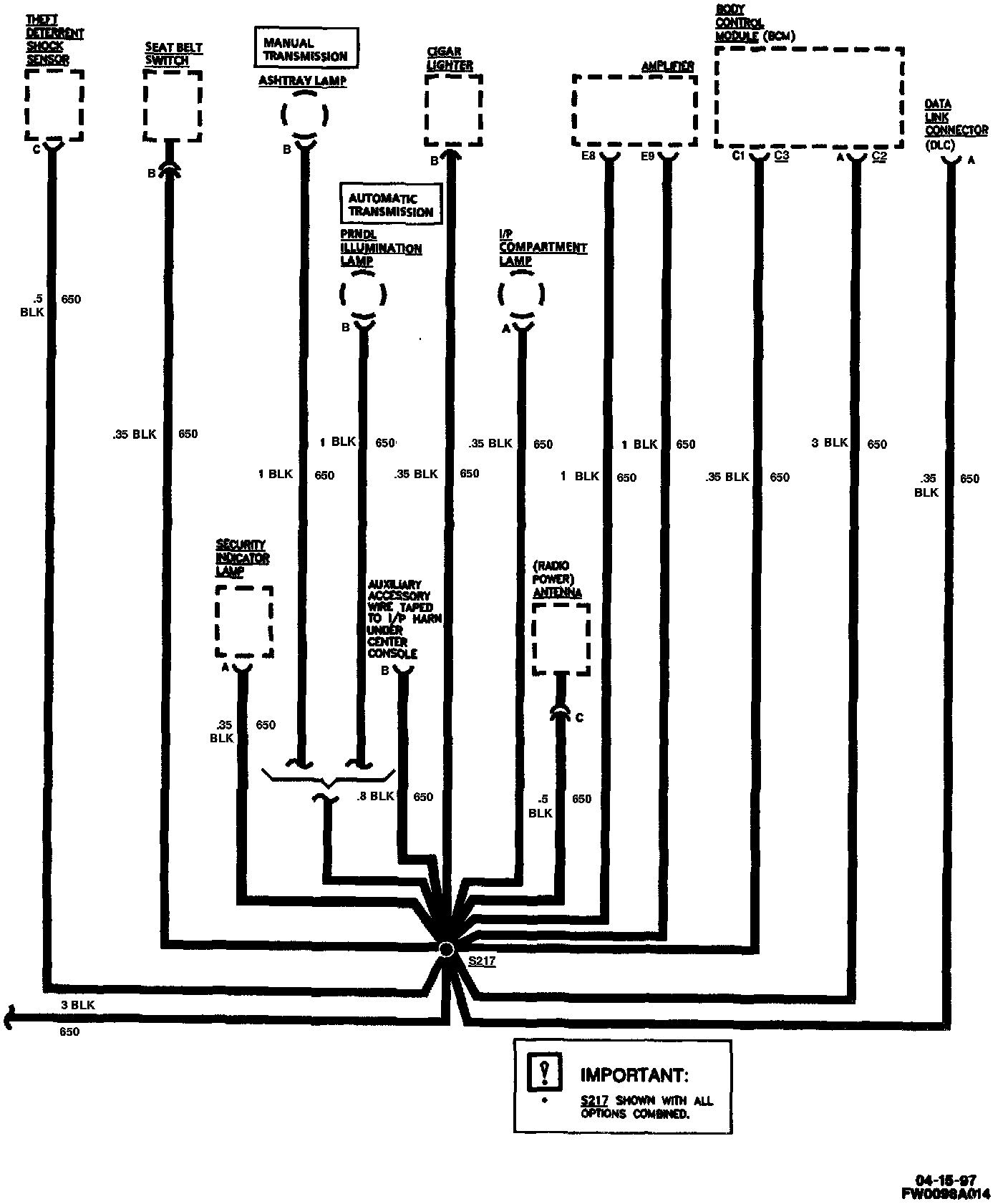

G200: BCM, DLC, UTD, Hatch Release, Radio, Instrument Panel And Console:
