Flywheel Torque Specifications

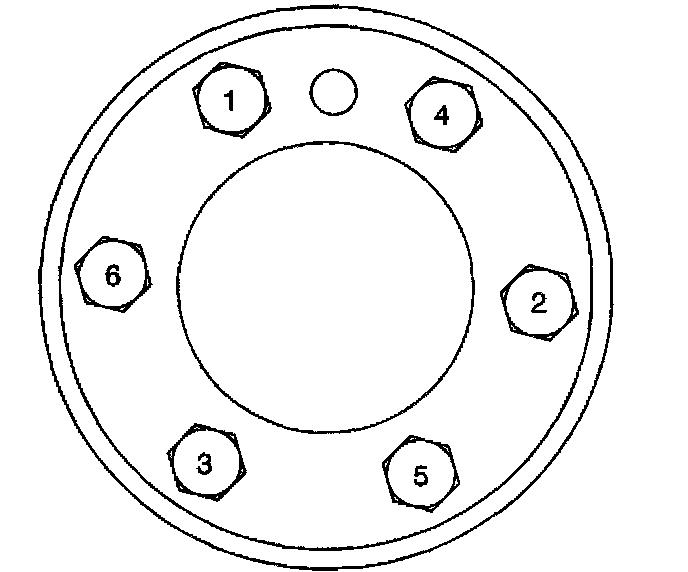

1. Tighten the engine flywheel bolts first pass in sequence to 20 Nm (15 lb ft).
2. Tighten the engine flywheel bolts second pass in sequence to 50 Nm (37 lb ft).
3. Tighten the engine flywheel bolts final pass in sequence to 100 Nm (74 lb ft).
