Vehicle Speed Sensor: Description and Operation

Vehicle Speed Sensor (2WD):

DESCRIPTION
The Vehicle Speed Sensor (VSS) is a pulse counter type input that informs the PCM how fast the vehicle is traveling.

OPERATION

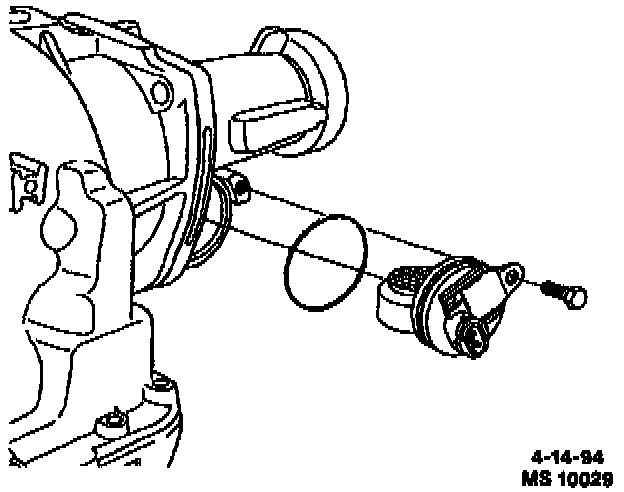

The VSS system uses an inductive sensor mounted in the tail housing of the transmission and a toothed reluctor wheel on the tail shaft. The teeth of the reluctor wheel alternately interfere with the magnetic field of the sensor creating an induced voltage pulse as the reluctor rotates.

The VSS produces an AC voltage signal that increases with vehicle speed. The PCM processes this signal and sends it to the following components:

^ Instrument Panel
^ Radio control head
^ Chime Module
^ Cruise Control Module
