Wheel Speed Sensor Jumper Harness Replmnt (Rear W/Trac CNTRL)

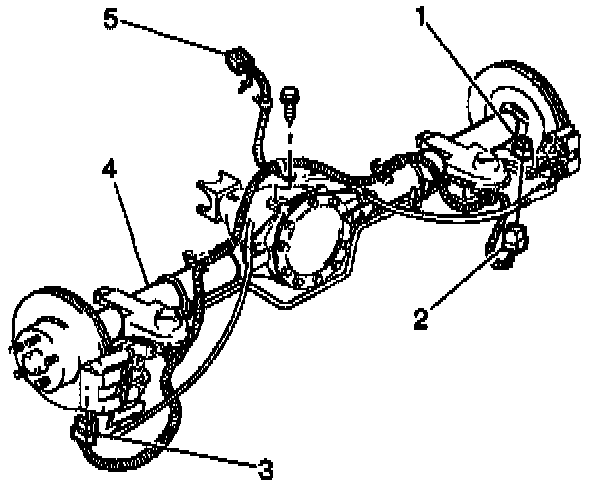

REMOVAL PROCEDURE
1. Remove the wheel speed sensor connectors (2,3).
2. Remove the jumper harness grommet from the retainer.
3. Remove the upper jumper harness connector from the rear body pass-thru connector.

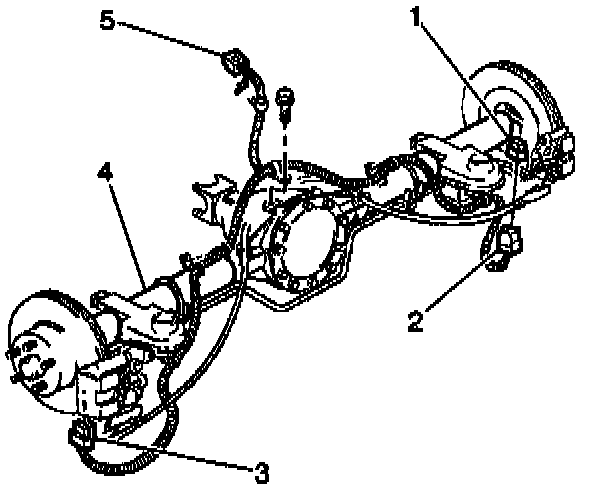

INSTALLATION PROCEDURE
1. Install the upper jumper harness connector from the rear body pass-thru connector.
2. Install the jumper harness grommet to the retainer.
3. Install the wheel speed sensor connectors (2,3).
