Wheel Speed Sensor Jumper Harness Replmnt (Front Left)





REMOVAL PROCEDURE

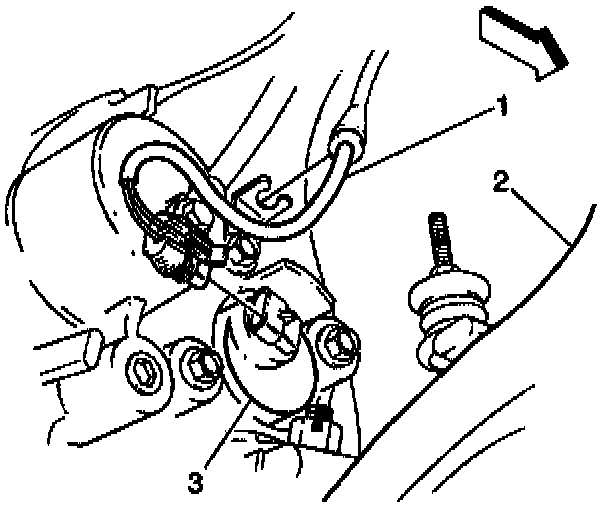

1. Remove the wheel speed sensor connector.
2. Remove the jumper harness from the retaining clip.
3. Remove the grommet retainer at the inner fender.
4. Remove the transmission cable retainer and various harnesses from restraints at left strut tower to access jumper harness connector.
5. Remove the upper jumper harness connector.
6. Pull the grommet through inner fender pass-thru and remove jumper harness.





INSTALLATION PROCEDURE
1. Route the new jumper harness through inner fender pass-thru.
2. Install the upper jumper harness connector.
3. Install the transmission cable retainer and various harnesses to restraints that may have been disconnected to access jumper harness.
4. Install the grommet retainer at the inner fender.
5. Install the jumper harness from the retaining clip.
6. Install the wheel speed sensor connector.
