Power Door Lock Switch: Service and Repair

REMOVAL PROCEDURE

IMPORTANT: Protect the trim panel with a rag when prying up the switch to prevent marring the trim panel.

1. Pry up the rear edge of the driver side switch, or the front edge of the passenger side switch.
2. Slide the driver side switch rearward, or the passenger side switch forward, out of the door trim panel.

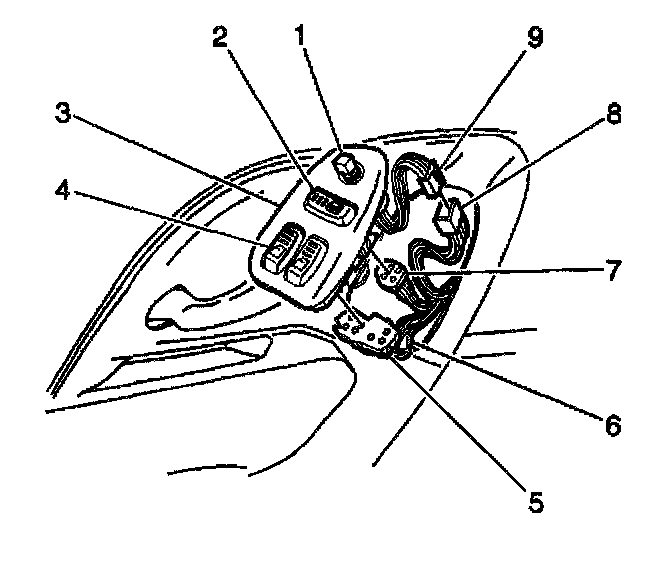

3. Disconnect the electrical connector (7) from the power door switch (2).
4. Remove the power lock switch (2) from the panel.

INSTALLATION PROCEDURE
1. Install the power lock switch (2) to the panel.
2. Connect the electrical connector (7) to the power door switch (2).
3. Insert the front edge of the driver side switch, the rear edge of the passenger side switch, into the door trim panel.
4. Press the rear edge of the driver side switch, the front edge of the passenger side switch, into the trim panel to secure.
