Installation Procedure

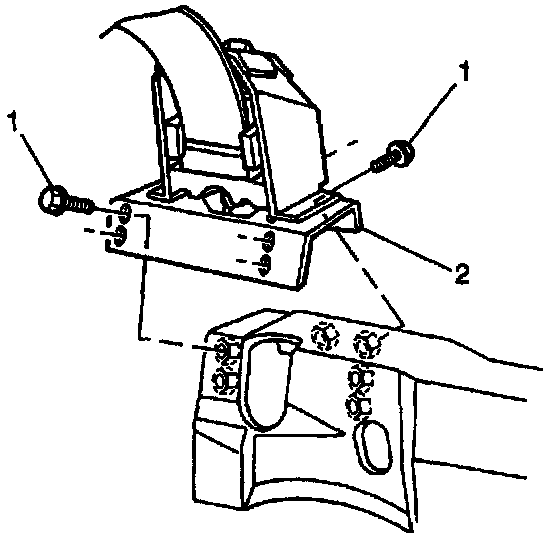

Description:

1. Install the bracket (2).

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the bracket bolts/screws (1).
Tighten
Tighten the bolts/screws (1) to 30 N.m (22 lb. ft).
3. Connect the retractor to the bracket (2).

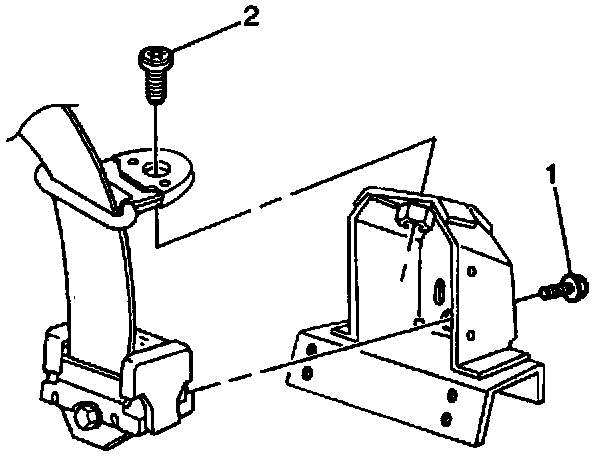

Description:

4. Install the bolts/screw (1) to the rear seat retractor-side belt.
Tighten
Tighten the bolt (2) to 42 N.m (31 lb. ft).
5. Install the bolt/screw (2) to the rear seat retractor-side belt guide.
Tighten
Tighten the bolt/screw (2) to 42 N.m (31 lb. ft).
6. Install the retractor trim cover. Refer to Rear Seat Shoulder Belt Replacement (Retractor Trim Cover).
